    Teldor 80050A2xxx 2x6005, 22 AWG Multicore Overall Foil-Shielded and Steel Braided Armored Cable可直埋金屬鎧裝電子A/V音響線
    看原圖
    		TELDOR-80050A2XXX

    商品編號: Teldor 80050A2xxx

    Teldor-80050A2xxx 2x6005, 22 AWG Multicore Overall Foil-Shielded and Steel Braided Armored Cable可直埋金屬鎧裝電子A/V音響線


    2x6005, 22 AWG Multicore Overall Foil-Shielded and Steel Braided Armored Cable

    Part Number:
    80050A2xxx
    　
    Applications: Audio-frequency signals, Portable, indoor applications, Outdoor installations, Indoor, outdoor, Control applications

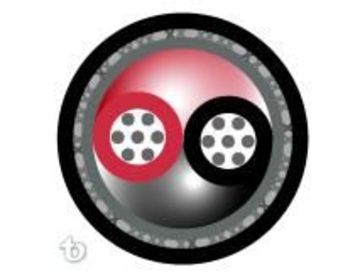

    General Construction: The cable contains 2 single cores, cabled together, overall shielded with a polyester-aluminum foil and  an inner jacket of a soft FR PVC compound. A Steel Wire Braided armor (Rodent protection) is applied in close contact to the inner jacket. An outer jacket of UV resistant FR PVC compound is put over the armor.
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 7.30 mm nom.
    Weight: 100 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: SR-PVC
    Insulation O.D.: 1.35 mm nom.
    Conductor Color Code: Black, Red
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size: 22 AWG
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Inner Jacket Material: FR-PVC
    Inner Jacket Diameter: 4.0 mm
    Armoring: Braided Steel
    Total number of wires: 2
    Total number of conductor units: 1
    Outer Jacket Thickness: 1.0 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    DC Resistance: 62.3 Ω/km nom.
    Velocity of Propagation: 45 % nom.
    Dielectric Strength: 1500 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Voltage Rating: 300 V
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -30 °C
