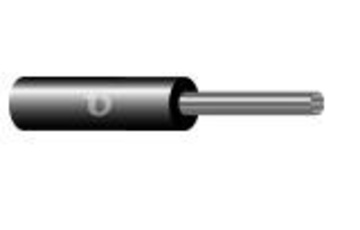

    Teldor-6004000xxx 24 AWG 80°C Flexible Conductor MIL-W 76 Type HW - Hook Up Wire (電子線)
    看原圖
    		TELDOR-6004000XXX

    商品編號: Teldor-6004000xxx

    Teldor-6004000xxx 24 AWG 80°C Flexible Conductor MIL-W 76 Type HW - Hook Up Wire (電子線)


    6004, 24 AWG 80°C Flexible Conductor

    Part Number:
    6004000xxx
    　
    Applications: Fixed or portable installation, Control and audio applications, Hook-up, Indoor
    General Construction: 24 AWG, PVC insulated flexible conductor per MIL-W 76, Type LW-C24(7)
    Outer Diameter: 1.15 mm nom.
    Weight: 3.2 kg/km

    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 24 AWG
    Conductor Construction: 7x0.20 mm
    Insulation Material: SR-PVC
    Insulation Thickness: 0.23 mm
    Conductor Color Code: Insulation colors – Single Conductors
    Standards
    Flamability Rating: UL 1581 VW-1
    UL Style: 1061
    Performance
    Max. DC Resistance : 93.2 Ω/km@20°C
    Velocity of Propagation: 45 % nom.
    Dielectric Strength: 1500 V/minute
    Voltage Rating: 300 V
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -40 °C
