    Teldor-70004PB101 4 mm2 Flexible Cord for Solar Collectors Interconnection 太陽能用電力線

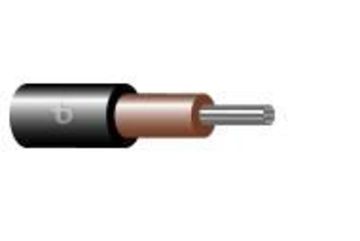

    看原圖
    		TELDOR-70004PB101

    4 mm2 Flexible Cord for Solar Collectors Interconnection

    Part Number:
    70004PB101
    　
    Applications: Power and control, Portable electrical equipment, 90°C applications, Heating, Outdoor Plant
    General Construction: 4 mm2 double  insulated flexible cord.   Inner XL-HFFR insulation and outer  XL-HFFR with excellent resistance to heat, oil, and chemicals.
    Conductor Cross Section: 4.0 mm²
    Outer Jacket Material: XL - HFFR
    Outer Diameter: 6.0 mm nom.
    Weight: 74 kg/km

    Design & Materials
    Detailed Construction:
    Temperatute Range:                                    -40°C to +125°C (3000 hours)
    　
    Conductor Material: Tinned Copper
    Conductor Construction: 56x0.30 mm
    Insulation Material: XL-HFFR 125°C
    Insulation Thickness: 0.8 mm
    Insulation O.D.: 4.2 mm nom.
    Conductor Color Code: Blue
    Outer Jacket Thickness: 0.9 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 5.1 Ω/km@20°C
    Dielectric Strength: 4000 V/minute
    Voltage Rating: 600 V
    Min. Bend Radius: 25 mm
    Max. Operating Temperature: +125 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
