    Teldor-3515030101 3X1.5 mm2 NYY 0.6/1.0 KV Underground Electrical Power Cable PVC可直埋電纜
    看原圖
    		TELDOR-3515030101

    商品編號: Teldor-3515030101

    Teldor-3515030101 3X1.5 mm2 NYY 0.6/1.0 KV Underground Electrical Power Cable PVC可直埋電纜


    3X1.5 mm2 NYY 0.6/1.0 KV Underground Electrical Power Cable

    Part Number:
    3515030101
    　
    Applications: Low voltage power, Power and control, Outdoor Plant, Underground Installations

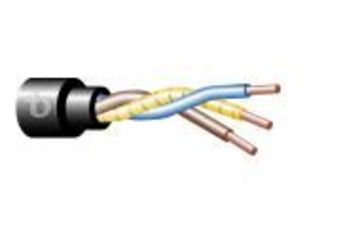

    General Construction:
    3 PVC insulated 1.5 mm2 solid wires, cabled together, inner PVC covering and outer  PVC  jacket.
    This cable is officially approved by SII to Israeli Standard 547.
    Conductor Cross Section: 1.5 mm²
    Outer Jacket Material: FR-PVC
    Outer Diameter: 11.1 mm nom.
    Weight: 165 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 1.39 mm
    Conductor Construction: Solid
    Insulation Material: PVC
    Insulation O.D.: 2.65 mm nom.
    Conductor Color Code: Blue, Brown, Yellow/Green
    Inner Jacket Material: PVC
    Total number of wires: 3
    Outer Jacket Thickness: 1.8 mm nom.
    Outer Jacket Color: Black
    Marking: Teldor Standard
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 12.1 Ω/km@20°C
    Dielectric Strength: 3400 V/10 minutes
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -15 °C
    UV resistance: Yes
