    Teldor-352503H101 3CX2.5 mm2 0.6/1.0 KV Underground Electrical Power Cable with HFFR Jacket 低煙無毒可直埋電纜
    看原圖
    		TELDOR-352503H101

    商品編號: Teldor-352503H101

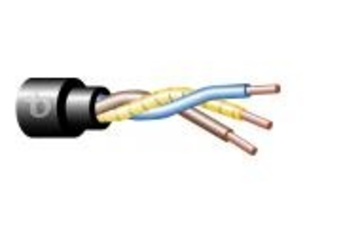

    Teldor-352503H101 3CX2.5 mm2 0.6/1.0 KV Underground Electrical Power Cable with HFFR Jacket 低煙無毒可直埋電纜


    3X2.5 mm2 0.6/1.0 KV Underground Electrical Power Cable with HFFR Jacket

    Part Number:
    352503H101
    　
    Applications: Low voltage power, Power and control, Outdoor Plant, Underground Installations
    General Construction:
    3 PVC insulated 2.5 mm2 solid wires, cabled together, inner PVC covering and outer  HFFR  jacket.

    　
    Conductor Cross Section: 2.5 mm²
    Outer Jacket Material: HFFR
    Outer Diameter: 12.5 mm nom.
    Weight: 235 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 1.78 mm
    Insulation Material: PVC
    Insulation O.D.: 3.25 mm nom.
    Conductor Color Code: Blue, Brown, Yellow/Green
    Inner Jacket Material: PVC
    Total number of wires: 3
    Outer Jacket Thickness: 1.8 mm nom.
    Outer Jacket Color: Black
    Marking: Teldor Standard
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 7.41 Ω/km@20°C
    Dielectric Strength: 3400 V/10 minutes
    Voltage Rating: 600 V
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -15 °C
    UV resistance: Yes
