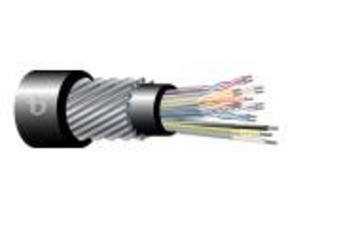

    Teldor-3525B24101 24CX2.5 mm2 0.6/1.0 KV Overall Shielded and Armored Power Cable PVC隔離金屬鎧裝可直埋電纜
    看原圖
    		TELDOR-3525B24101

    商品編號: Teldor-3525B24101

    Teldor-3525B24101 24CX2.5 mm2 0.6/1.0 KV Overall Shielded and Armored Power Cable PVC隔離金屬鎧裝可直埋電纜


    24X2.5 mm2 0.6/1.0 KV Overall Shielded and Armored Power Cable

    Part Number:
    3525B24101
    　
    Applications: Low voltage power, Power and control, Outdoor Plant, Underground Installations
    General Construction:
    24 PVC insulated 2.5 mm2 solid wires, cabled together, inner PVC jacket, Served Steel Wire Armor (Rodent Protection) and outer  PVC  jacket.
    This cable is officially approved by SII to Israeli Standard 1516 (IEC 60502).
    Conductor Cross Section: 2.5 mm²
    Outer Jacket Material: FR-PVC
    Outer Diameter: 31.5 mm nom.
    Weight: 1965 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 1.78 mm
    Insulation Material: PVC
    Insulation Thickness: 0.8 mm
    Insulation O.D.: 3.4 mm nom.
    Conductor Color Code: Black, numbered
    Inner Jacket Material: PVC
    Inner Jacket Thickness: 1.6 mm
    Inner Jacket Diameter: 24.0 mm
    Inner Jacket Color: Black
    Armor: Yes
    Armoring: Served Wire
    Total number of wires: 24
    Outer Jacket Thickness: 2.0 mm nom.
    Outer Jacket Color: Black
    Marking: Teldor Standard
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 7.14 Ω/km@20°C
    Dielectric Strength: 3400 V/10 minutes
    Voltage Rating: 600/1000 V
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -15 °C
    UV resistance: Yes
