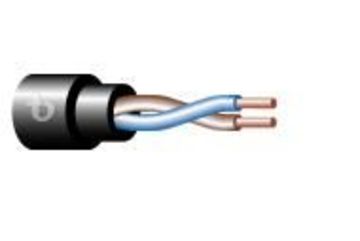

    Teldor-354002M101 2CX4 mm2 0.6/1.0 KV Underground Electrical Power Cable with Moisture Barier PVC可直埋電纜
    看原圖
    		TELDOR-354002M101

    商品編號: Teldor-354002M101

    Teldor-354002M101 2CX4 mm2 0.6/1.0 KV Underground Electrical Power Cable with Moisture Barier PVC可直埋電纜


    2X4 mm2 0.6/1.0 KV Underground Electrical Power Cable with Moisture Barier

    Part Number:
    354002M101
    　
    Applications: Low voltage power, Power and control, Outdoor Plant, Underground Installations
    General Construction:
    2 PVC insulated 4.0 mm2 solid wires, cabled together, inner PVC covering, outer  PVC  jacket and additinal Moisture Barier made PE jacket bonded to heavy-duty aluminum tape.

    Conductor Cross Section: 4.0 mm²
    Outer Jacket Material: FR-PE
    Outer Diameter: 17.0 mm nom.
    Weight: 345 kg/km

    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 2.25 mm
    Insulation Material: PVC
    Insulation Thickness: 0.8 mm
    Insulation O.D.: 3.9 mm nom.
    Conductor Color Code: Blue, Brown
    Inner Jacket Material: PVC
    Inner Jacket Color: Natural
    2nd Inner Jacket Material: FR-PVC
    2nd Inner Jacket Thickness: 1.8 mm
    2nd Inner Jacket Diameter: 13.0 mm
    2nd Inner Jacket Color: Black
    Total number of wires: 2
    Moisture Barrier: Yes
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1
    Performance
    Max. DC Resistance : 4.61 Ω/km@20°C
    Dielectric Strength: 3400 V/10 minutes
    Min. Bend Radius: 205 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -15 °C
    UV resistance: Yes
