    Teldor-3330720xxx 2Cx0.75 mm2 Electrical Flexible PU Power Cord
    看原圖
    		TELDOR-3330720XXX

    商品編號: Teldor-3330720xxx

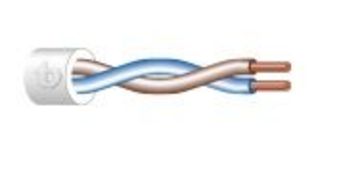

    Teldor-3330720xxx 2Cx0.75 mm2 Electrical Flexible PU Power Cord


    2x0.75 mm2 Electrical Flexible PU Cord

    Part Number:
    3330720xxx
    　
    Applications: Power and control, Portable electrical equipment, Outdoor Plant
    General Construction: 2 PVC insulated 0.75 mm2 flexible wires cabled together and jacketed with flexible PU, with excelentr resistance to chemicals and abrasion.
    Conductor Cross Section: 0.75 mm²
    Outer Jacket Material: PU
    Outer Diameter: 6.4 mm nom.
    Weight: 52 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Construction: 24x0.20 mm
    Insulation Material: PVC
    Insulation O.D.: 2.2 mm nom.
    Conductor Color Code: Brown, Blue
    Total number of elements: 2
    Outer Jacket Thickness: 0.8 mm nom.
    Outer Jacket Color: 　
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 26.0 Ω/km@20°C
    Dielectric Strength: 2000 V/15 minutes
    Voltage Rating: 300 V
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -15 °C
    UV resistance: Yes
