    Teldor-6100264000 4Cx26 AWG Jumper Cable
    看原圖
    		TELDOR-6100264000

    商品編號: Teldor-6100264000

    Teldor-6100264000 4Cx26 AWG Jumper Cable


    4x26 AWG Jumper Cable

    Part Number:
    6100264000
    　
    Applications: LF (audio) signals, Hook-up, Indoor, Control applications

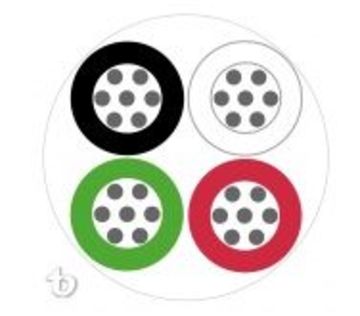

    General Construction: 1 - 26 AWG twisted quad
    　
    Outer Diameter: 2.7 mm nom.
    Weight: 9.7 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 26 AWG
    Conductor Construction: 19x0.10 mm
    Insulation Material: SR-PVC
    Insulation O.D.: 1.0 mm nom.
    Conductor Color Code: Black, White, Red, Green
    Total number of wires: 4
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 143 Ω/km@20°C
    Velocity of Propagation: 45 % nom.
    Dielectric Strength: 1500 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +105 °C
    Min. Operating Temperature: -50 °C
