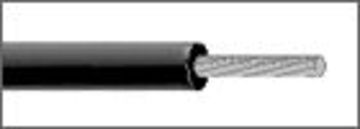

    Teldor-6441220xxx 12 AWG HFFR Flexible Conductor 600 V 低煙無鹵
    看原圖
    		TELDOR-6441220XXX

    商品編號: Teldor-6441220xxx

    Teldor-6441220xxx 12 AWG HFFR Flexible Conductor 600 V 低煙無鹵


    12 AWG HFFR Flexible Conductor 600 V

    Part Number:
    6441220xxx
    　
    General Construction: 12 - AWG HFFR insulated flexible wire
    Outer Diameter: 4.00 mm nom.
    Weight: 43 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 12 AWG
    Conductor Construction: 63x0.25 mm
    Insulation Material: HFFR
    Conductor Color Code: 　
    Outer Jacket Color: 　
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: UL 1581 VW-1
    Performance
    Max. DC Resistance : 6.3 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -30 °C
