    首頁 > > Teldor-Electrical Flexible Power Cord

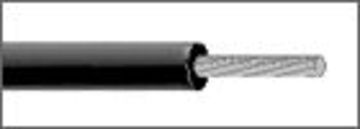

    Teldor-6441632xxx 16 AWG HFFR Flexible Conductor 600 V低煙無鹵
    看原圖
    		TELDOR-6441632XXX

    商品編號: Teldor-6441632xxx

    Teldor-6441632xxx 16 AWG HFFR Flexible Conductor 600 V低煙無鹵


    16 AWG HFFR Flexible Conductor 600 V

    Part Number:
    6441632xxx
    　
    General Construction: 16 - AWG HFFR insulated flexible wire
    Outer Diameter: 3.1 mm nom.
    Weight: 21.0 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 16 AWG
    Conductor Construction: 25x0.25 mm
    Insulation Material: HFFR
    Conductor Color Code: 　
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: UL 1581 VW-1
    Performance
    Max. DC Resistance : 15.0 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -30 °C
