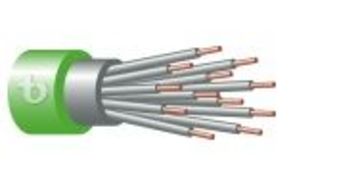

    Teldor-3691537106 XLPE-PVC 37Cx1.5/10 mm2 N2XCY Shielded Electric Power Cable隔離電力電纜
    看原圖
    		TELDOR-3691537106

    商品編號: Teldor-3691537106

    Teldor-3691537106 XLPE-PVC 37Cx1.5/10 mm2 N2XCY Shielded Electric Power Cable隔離電力電纜


    37x1.5/10 mm2 N2XCY Shielded Electric Power Cable

    Part Number:
    3691537106
    　
    Applications: Low voltage power, Power and control, 90°C applications
    General Construction:
    37 XLPE insulated 1.5 mm2 (class 2 per IEC 60228) wires, cabled together, inner PVC sheet, 10 mm2 metallic screen of copper wires and copper tape and outer  PVC  jacket.
    This cable is officially approved by SII to Israeli Standard 1516/1.
    Conductor Cross Section: 1.5 mm²
    Outer Jacket Material: FR-PVC ST2 per IEC 60502
    Outer Diameter: 30.0 mm nom.
    Weight: 1245 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Construction: 7x0.53 mm
    Insulation Material: XLPE
    Insulation Thickness: 0.75 mm
    Insulation O.D.: 3.1 mm nom.
    Inner Jacket Material: FR-PVC ST2 per IEC 60502
    Inner Jacket Thickness: 1.2 mm
    Inner Jacket Diameter: 24.5 mm nom
    Inner Jacket Color: Black
    Total number of wires: 37
    Outer Jacket Thickness: 2.0 mm nom.
    Outer Jacket Color: Green
    Marking: Teldor Standard
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 12.1 Ω/km@20°C
    Max. Screen Resistance: 1.83 Ω/Km @20°C
    Dielectric Strength: 3400 V/10 minutes
    Voltage Rating: 600 V
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -50 °C
    UV resistance: Yes
