    IEC-0101FT 10/100Base 工業等級光電轉換器
    看原圖
    		IEC-0101FT

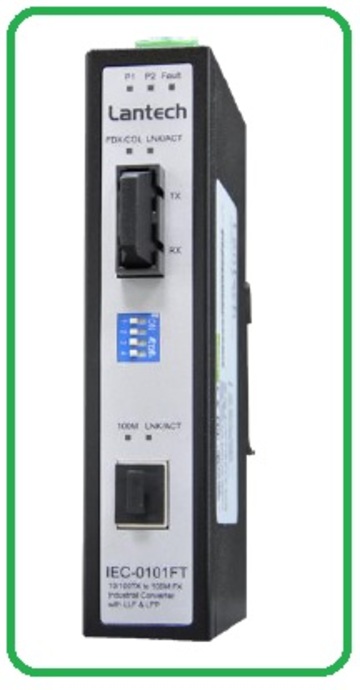

    IEC-0101FT 10/100Base 工業等級光電轉換器



    The IEC-0101FT Industrial Converter is a slim type Industrial converter which has a unique DIP switch to adjust 100M duplex mode and LLF (Link Loss Forwarding) function.

    Through the DIP switch, you can also set power alarm and pure converter mode. Featured with LLF function, the Lantech IEC-0101FT is able to auto-cut off connection if one end of connection is down. The built-in LFP (Link Fault Pass-Through) scheme is to cut off Fiber TX or RX when either one has lost connection then trigger LLF to cut off all connection. Smart LLF and LFP functions alert central side switch immediate remedy action when connection is lost.

    The IEC-0101FT is designed to meet the demands of industrial environments, comes packaged in a robust IP 30 housing and has been tested extensively to meet Industrial EMI and EMC standards. With UL Class I Division II approval, IEC-0010FT can be implemented in hazardous or explosive condition without accelerating the potential damage. It is the best choice to be installed in inflammable environment where the liquid, gas and vapor etc might present the hazardous condition which generally to be find in mining, oil & gas, chemical, processing automation areas.

    DNV-Type Approval IEC-0101FT-DNV model meets with the most critical test criteria in DNV Type test directives consisting of MED (Marine Equipment Directive), EMC (Electromagnetic Compatibility Directive) and LVD (Low Voltage Directive) in which vibration, high voltage, compass safe distance, salt mist tests, humidity etc are conducted to ensure the switch sustaining the harsh on-board environments often founded in Ships, Crafts and Offshore platforms.

    System Interface/Performance
              ♦ UTP to Fiber Media Converter
              ♦ RJ-45 port support Auto MDI/MDI-X Function
              ♦ Auto Negotiation Speed, Half/Full Duplex
              ♦ Store-and-Forward Switching Architecture
              ♦ -E / DNV model supports wide operating temperature from -40°C to 75°C
              ♦ Built-in LLF & LFP Technology
    Provides EFT protection ±2000 VDC for power line
    Supports ±6000 VDC Ethernet ESD protection
    Power Supply
               ♦ Wide-range Redundant Dual Power Design
               ♦ Support 9 to 56VDC /-9 to -56VDC power inputs
               ♦ Overload current resettable Fuse Present
               ♦ Power Polarity Reverse Protect
    IP-30 enclosure with DIN Rail and wall mount design
    UL Class I Division II for Group A,B,C and D hazardous location


    Standards

    IEEE 802.3 10Base-T Ethernet
    IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
    IEEE802.3x Flow Control and Back Pressure

    Protocol

    CSMA/CD

    Transfer Rate

    14,880pps for Ethernet port
    148,800pps for Fast Ethernet port

    Connectors

    SC/ST (Multi-mode): 50/125um~62.5/125um
    SC/ST (Single-mode): 9/125um
    Available distance: 2km (Multi-mode) / 30km(Single-mode)
    Wavelength: 1310nm (Multi-mode/Single-mode)
    10/100TX: 1 x RJ-45 with auto MDI/MDI-X function
    [Multi-Mode] power budget: Min: 9dB, MAX: 19dB.
    [Single-Mode] power budget: Min: 19dB, MAX: 26dB.

    Transfer packet size

    64bytes to 1522 bytes (with VLAN tag).

    Mac Address

    2K MAC address table

    Network Cable

    10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable
    EIA/TIA-568 100-ohm (100m)
    100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
    EIA/TIA-568 100-ohm (100m)

    DIP Switch

    DIP Switch 1: OFF: Disables Port /Power Alarm; ON: Enables Port /Power Alarm
    DIP Switch 2: OFF: Disables LLF (Link Lose Forwarding) & LFP (Link Fault Pass-Through) ; ON: Enables LLF & LFP
    DIP Switch 3: OFF: 100Base-FX Full-mode; ON: 100Base-FX Half-mode
    DIP Switch 4: OFF: Switching mode; ON: Media mode (100TX to 100FX)

    Power Consumption

    2.74 Watts

    Reserve polarity protection

    Present

    Overload current protection

    Present

    LED

    Per unit: Power 1 (Green), Power 2 (Green), Fault(Red)
    TX: Link/Active (Green), 100M(Yellow)
    Fiber: Link/Active (Green), Full duplex/Collision (Yellow)

    Operating Humidity

    5% ~ 95% (Non-condensing)

    Operating Temperature

    -20°C~60°C / -4°F~140°F (Standard model)
    -40°C~75°C / -40°F~167°F (-E / DNV model)

    Storage Temperature

    -40°C~85°C / -40°F~185°F

    Case Dimension

    Metal case,IP-30; 30mm(W)x95mm(D)x140mm(H)

    Weight

    600 g

    EMI & EMS

    FCC Class A,
    CE EN61000-4-2 (ESD),
    CE EN61000-4-3 (RS),
    CE EN61000-4-4 (EFT),
    CE EN61000-4-5 (Surge),
    CE EN61000-4-6 (CS),
    CE EN61000-4-8,
    CE EN61000-4-11,
    CE EN61000-4-12,
    CE EN61000-6-2,
    CE EN61000-6-4

    Safety

    UL, cUL, CE/EN60950
    UL Class I Division II for Group A,B,C and D hazardous location

    Stability Testing

    IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

    MTBF

    405486 hrs

    Power Supply

    24VDC (9~48VDC),12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block
