    Teldor-8296004101 4x18 AWG ETFE Insulated Overall Braid Shielded Instrumentation Cable 鐵弗龍隔離儀表訊號控制線纜
    看原圖
    		TELDOR-8296004101

    商品編號: Teldor-8296004101

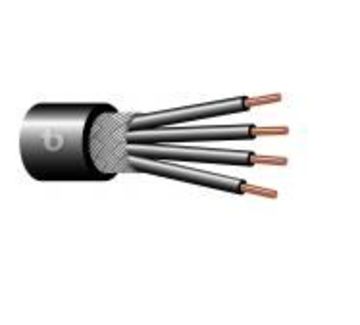

    Teldor-8296004101 4x18 AWG ETFE Insulated Overall Braid Shielded Instrumentation Cable 鐵弗龍隔離儀表訊號控制線纜


    4x18 AWG ETFE Insulated Overall Braid Shielded Instrumentation Cable

    Part Number:
    8296004101
    　
    Applications: Process control industry, Hazardous areas, Class 1 Division 2
    General Construction: 4 wires are cabled together, overall copper braid shielded and PE jacketed.
    Outer Jacket Material: PE
    Outer Diameter: 7.7 mm nom.
    Weight: 85 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 18 AWG
    Conductor Construction: 7x0.40 mm
    Insulation Material: ETFE
    Insulation Thickness: 0.43 mm
    Insulation O.D.: 2.0 mm nom.
    Conductor unit identification: Numbered
    Conductor Color Code: Black
    Lay Length: 50 mm
    Overall Shield Material: Tinned-copper braid
    Overall Foil Thickness: 70 µm
    Total number of conductor units: 4
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Performance
    Max. DC Resistance : 23.5 Ω/km@20°C
    Min. Bend Radius: 45 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -60 °C
    UV resistance: Yes
