    Teldor-8521801101 1Px18 AWG Overall Shielded Instrumentation Cable 隔離儀表訊號控制線纜
    看原圖

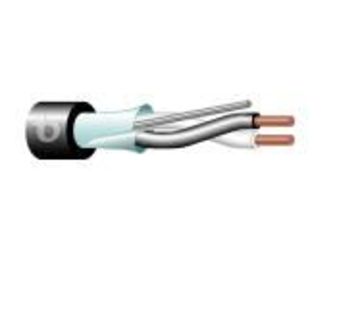

    		TELDOR-8521801101

    商品編號: Teldor-8521801101

    Teldor-8521801101 1Px18 AWG Overall Shielded Instrumentation Cable 隔離儀表訊號控制線纜


    1x2x18 AWG Overall Shielded Instrumentation Cable

    Part Number:
    8521801101
    　
    Applications: Process control industry, Hazardous areas, Class 1 Division 2
    General Construction: One twisted pair, cabled together with a drain-wire and overall aluminum-foil shielded
    Outer Jacket Material: FR-PVC
    Outer Diameter: 5.0 mm nom.
    Weight: 40.0 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 18 AWG
    Conductor Size: 7x0.40 mm
    Conductor Construction: Stranded
    Insulation Material: PVC
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 2.0 mm nom.
    Conductor Color Code: White x Black
    Lay Length: 50 mm
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size mm.: 7x0.32 mm
    Drain-wire 1 size: 20 AWG
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Thickness: 23 µm
    Total number of wires: 2
    Outer Jacket Thickness: 0.50 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 22.0 Ω/km@20°C
    Capacitance Pair to Shield: 170 pF/m
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 300 V
    Min. Bend Radius: 35 mm
    Max. Operating Temperature: +90 °C
