TELDOR-8521881101

商品編號: Teldor-8521881101

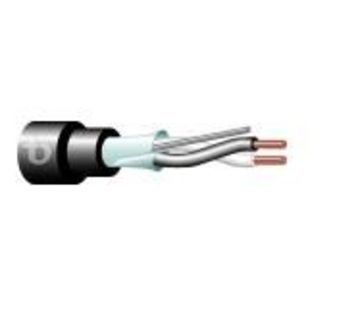

Teldor-8521881101 1Px18 AWG Overall Shielded Instrumentation Cable With Double Jacket雙被覆隔離儀表訊號控制線纜

1x2x18 AWG Overall Shielded Instrumentation Cable With Double Jacket

Part Number:	8521881101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Class 1 Division 2
General Construction:	One twisted pair, cabled together with a drain-wire and overall aluminum-foil shielded and double FR PVC jacketed.
Outer Jacket Material:	FR-PVC
Outer Diameter:	7.5 mm nom.
Weight:	77 kg/km

Design & Materials

Conductor Material:	Bare Copper
Conductor Size:	18 AWG
Conductor Construction:	7x0.40 mm
Insulation Material:	PVC
Insulation Thickness:	0.4 mm
Insulation O.D.:	2.0 mm nom.
Conductor Color Code:	White x Black
Lay Length:	60 mm
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Foil Thickness:	23 µm
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	20 AWG
Overall Drain-wire Construction:	Stranded
Inner Jacket Material:	UV resistant FR-PVC
Inner Jacket Thickness:	0.5 mm
Inner Jacket Diameter:	5.1 mm
Inner Jacket Color:	Black
Total number of wires:	2
Total number of conductor units:	1
Outer Jacket Thickness:	1.2 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Standards:	RoHS 2002/95/EC
Flamability Rating:	IEC 60332-1, UL 1581 VW-1

Performance
