TELDOR-8621801101

商品編號: Teldor-8621801101

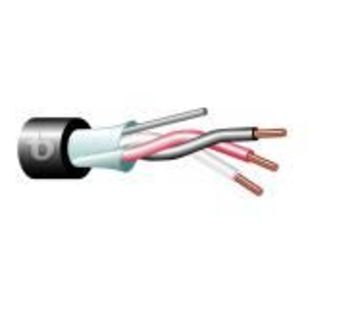

Teldor-8621801101 One twisted triad 1x3x18 AWG 隔離儀表訊號控制線纜

INSTRUMENTATION CABLE 1x3x18 AWG

Part Number:	8621801101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Class 1 Division 2
General Construction:	One twisted triad, cabled together with a drain-wire and overall aluminum-foil shielded.
Outer Jacket Material:	FR-PVC
Outer Diameter:	5.3 mm nom.
Weight:	52 kg/km

Design & Materials

Conductor Material:	Bare Copper
Conductor Size:	18 AWG
Conductor Construction:	7x0.43 mm
Insulation Material:	PVC
Insulation Thickness:	0.4 mm
Insulation O.D.:	2.01 mm nom.
Conductor Color Code:	Black x White x Red
Lay Length:	50 mm
Drain-wire 1 Material:	Tinned Copper
Drain-wire 1 Construction:	Stranded
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Foil Thickness:	23 µm
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	20 AWG
Overall Drain-wire Construction:	Stranded
Total number of wires:	3
Outer Jacket Thickness:	0.5 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Flamability Rating:

IEC 60332-1, UL 1581 VW-1
