TELDOR-8701808101

商品編號: Teldor-8701808101

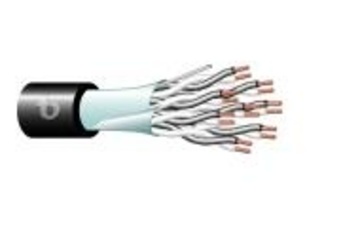

Teldor- 8701808101 300V 8Px18 AWG Overall Shielded Instrumentation Cable 隔離儀表訊號控制線纜

8x2x18 AWG Overall Shielded Instrumentation Cable

Part Number:	8701808101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Class 1 Division 2
General Construction:	8 pairs are cabled together with a communication wire, overall polyester/aluminum tape shielded and jacketed.
Outer Jacket Material:	UV resistant FR-PVC
Outer Diameter:	14.0 mm nom.
Weight:	280 kg/km

Design & Materials

Conductor Material:	Bare Copper
Conductor Size:	18 AWG
Conductor Construction:	7x0.40 mm
Insulation Material:	FR-PVC -55°C to 105°C rating
Insulation Thickness:	0.43 mm
Insulation O.D.:	2.0 mm nom.
Conductor unit identification:	Numbered
Lay Length:	50 mm
Comm. Wire:	22 AWG - Orange
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Foil Thickness:	24 µm
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	18 AWG
Overall Drain-wire Construction:	Stranded
Total number of conductor units:	16
Total number of elements:	8
Outer Jacket Thickness:	1.3 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Flamability Rating:

IEC 60332-3 , IEEE 383

Performance
