TELDOR-8701870101

商品編號: Teldor-8701870101

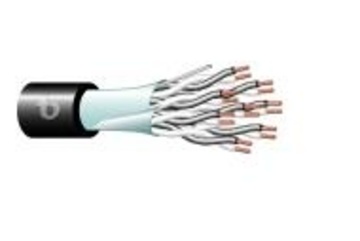

Teldor-8701870101 300V 70Px18 AWG Overall Shielded Instrumentation Cable隔離儀表訊號控制線纜

70x2x18 AWG Overall Shielded Instrumentation Cable

Part Number:	8701870101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Class 1 Division 2
General Construction:	70 pairs are cabled together with a communication wire, overall polyester/aluminum tape shielded and jacketed.
Outer Jacket Material:	UV resistant FR-PVC
Outer Diameter:	35.5 mm nom.
Weight:	1950 kg/km

Design & Materials

Conductor Material:	Bare Copper
Conductor Size:	18 AWG
Conductor Construction:	7x0.40 mm
Insulation Material:	FR-PVC -55°C to 105°C rating
Insulation Thickness:	0.43 mm
Insulation O.D.:	2.0 mm nom.
Conductor unit identification:	Numbered
Conductor Color Code:	Black x White
Lay Length:	50 mm
Comm. Wire:	22 AWG - Orange
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Foil Thickness:	24 µm
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	18 AWG
Overall Drain-wire Construction:	Stranded
Total number of conductor units:	140
Total number of elements:	70
Outer Jacket Thickness:	2.0 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Standards:	RoHS 2002/95/EC
Flamability Rating:	IEC 60332-3 , IEEE 383
