TELDOR-8741812101

商品編號: Teldor-8741812101

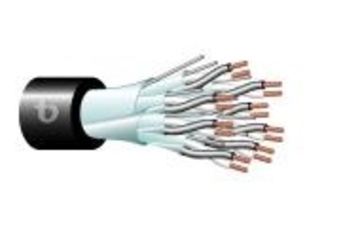

Teldor-8741812101 300V 12Px18 AWG Individual and Overall Shielded Instrumentation Cable個別隔離儀表訊號控制線纜

12x2x18 AWG Individual and Overall Shielded Instrumentation Cable

Part Number:	8741812101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Class 1 Division 2
General Construction:	12 pairs are individual polyester/aluminum tape shilded, cabled together with a communication wire, overall polyester/aluminum tape shielded and jacketed.
Outer Jacket Material:	UV resistant FR-PVC
Outer Diameter:	18.5 mm nom.
Weight:	470 kg/km

Design & Materials

Conductor Material:	Bare Copper
Conductor Size:	18 AWG
Conductor Construction:	7x0.40 mm
Insulation Material:	FR-PVC -55°C to 105°C rating
Insulation Thickness:	0.43 mm
Insulation O.D.:	2.0 mm nom.
Conductor unit identification:	Numbered
Conductor Color Code:	Black x White
Lay Length:	50 mm
Ind. Shield Material:	Aluminum/Polyester Foil
Ind. Shield Design:	100% Coverage
Ind. Shield Thickness:	24 µ
Drain-wire 1 Construction:	Stranded
Drain-wire 1 size:	22 AWG
Drain-wire 2 Material:	Tinned Copper
Drain-wire 2 Construction:	Stranded
Comm. Wire:	22 AWG - Orange
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Foil Thickness:	24 µm
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	20 AWG
Overall Drain-wire Construction:	Stranded
Total number of conductor units:	24
Total number of elements:	12
Outer Jacket Thickness:	1.6 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Flamability Rating:

IEC 60332-3 , IEEE 383
