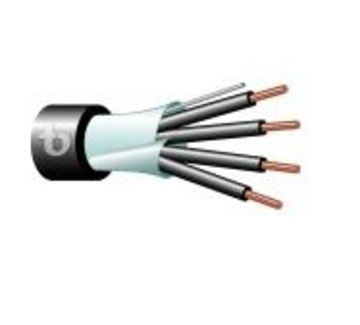

    Teldor-8N6P904xxx 4x16 AWG Overall Shielded Instrumentation Cable + Jacket Awg16x4C鋁箔隔離電纜
    看原圖
    		TELDOR-8N6P904XXX

    商品編號: Teldor-8N6P904xxx

    Teldor-8N6P904xxx 4x16 AWG Overall Shielded Instrumentation Cable + Jacket Awg16x4C鋁箔隔離電纜


    4x16 AWG Overall Shielded Instrumentation Cable + Jacket

    Part Number:
    8N6P904xxx
    　
    Applications: Process control industry, Hazardous areas, Class 1 Division 2
    General Construction: 4-16 AWG PVC insulated wires, cabled together,  overall aluminum-foil shielded and double  jacketed with PVC compound.
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 9.8 mm nom.
    Weight: 145 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 16 AWG
    Conductor Size: 7x0.49 mm
    Conductor Construction: Stranded
    Insulation Material: PVC
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 2.3 mm nom.
    Conductor Color Code: Black, numbered
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size mm.: 7x0.32 mm
    Drain-wire 1 size: 20 AWG
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Thickness: 23 µm
    Inner Jacket Material: UV resistant FR-PVC
    Inner Jacket Thickness: 1.2 mm
    Inner Jacket Diameter: 8.2 mm
    Inner Jacket Color: Black
    Total number of wires: 4
    Outer Jacket Thickness: 0.8 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 13.9 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 300 V
    Min. Bend Radius: 60 mm
    Max. Operating Temperature: +90 °C
    UV resistance: Yes
