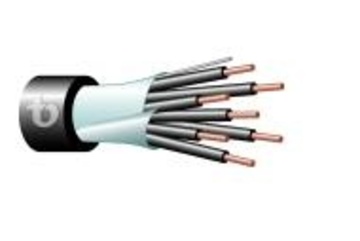

    Teldor-8N8P110101 300V 10Cx18 AWG Overall Shielded Instrumentation Cable隔離儀表訊號控制線纜
    看原圖
    		TELDOR-8N8P110101

    商品編號: Teldor-8N8P110101

    Teldor-8N8P110101 300V 10Cx18 AWG Overall Shielded Instrumentation Cable隔離儀表訊號控制線纜


    10x18 AWG Overall Shielded Instrumentation Cable

    Part Number:
    8N8P110101
    　
    Applications: Process control industry, Hazardous areas, Class 1 Division 2
    General Construction: 10-18 AWG PVC insulated wires, cabled together,  overall aluminum-foil shielded and PVC jacketed.
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 11.5 mm nom.
    Weight: 185 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 18 AWG
    Conductor Construction: 7x0.40 mm
    Insulation Material: PVC
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 2.0 mm nom.
    Conductor Color Code: Black, numbered
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Thickness: 23 µm
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 18 AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 10
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 22.0 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 300 V
    Min. Bend Radius: 70 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
