TELDOR-8551411101

商品編號: Teldor-8551411101

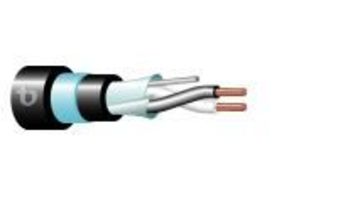

Teldor-8551411101 1x2x14 AWG Direct Burial Instrumentation Cable Overall Shielded with Moisture Barrier防潮濕可直埋儀表控制電纜

1x2x14 AWG Direct Burial Instrumentation Cable Overall Shielded with Moisture Barrier

Part Number:	8551411101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Harsh environments, Direct burial, Class 1 Division 2
General Construction:	1 twisted pair, overall polyester/aluminum tape shielded, inner PVC jacket, moisture barrier of aluminum tape bonded to outdoor FR PE jacket.
Outer Jacket Material:	FR-PE
Outer Diameter:	11.0 mm nom.
Weight:	140 kg/km

Design & Materials

Conductor Material:	Bare Copper
Conductor Size:	14 AWG
Conductor Construction:	7x0.61 mm
Insulation Material:	FR-PVC -55°C to 105°C rating
Insulation Thickness:	0.43 mm
Insulation O.D.:	2.85 mm nom.
Conductor Color Code:	Black x White
Lay Length:	60 mm
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Foil Thickness:	24 µm
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	16 AWG
Overall Drain-wire Construction:	Stranded
Inner Jacket Material:	UV resistant FR-PVC
Inner Jacket Thickness:	0.5 mm
Inner Jacket Diameter:	7.6 mm
Inner Jacket Color:	Black
Total number of conductor units:	2
Total number of elements:	1
Moisture Barrier:	Yes
Outer Jacket Thickness:	0.9 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Standards:	RoHS 2002/95/EC
Flamability Rating:	IEC 60332-1, UL 1581 VW-1

Performance
