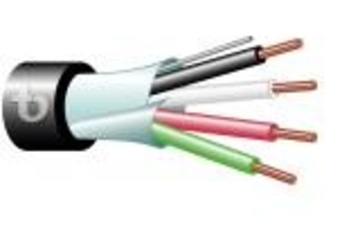

    Teldor-8B0P104xxx 4Cx10 AWG 600V Overall Shielded Instrumentation Cable 鋁箔隔離儀表訊號控制線纜
    看原圖
    		TELDOR-8B0P104XXX

    商品編號: Teldor-8B0P104xxx

    Teldor-8B0P104xxx 4Cx10 AWG 600V Overall Shielded Instrumentation Cable 鋁箔隔離儀表訊號控制線纜


    4x10 AWG 600V Overall Shielded Instrumentation Cable

    Part Number:
    8B0P104xxx
    　
    Applications: Process control industry, Indoor, Outdoor
    General Construction: 4 wires are cabled together, overall polyester/aluminum tape shielded and jacketed.
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 17.0 mm nom.
    Weight: 440 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 10 AWG
    Conductor Size: 7x1.02 mm
    Conductor Construction: Stranded
    Insulation Material: FR-PVC -55°C to 105°C rating
    Insulation Thickness: 1.15 mm
    Insulation O.D.: 5.35 mm nom.
    Conductor Color Code: Black, White, Red, Green
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 12 AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 4
    Outer Jacket Thickness: 1.5 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 3.60 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Min. Insulation Resistance : 200 MΩ•km
    Min. Bend Radius: 100 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
