    Teldor-8B2P102xxx 2Cx12 AWG 600V Overall Shielded Instrumentation Cable隔離儀表訊號控制線纜
    看原圖

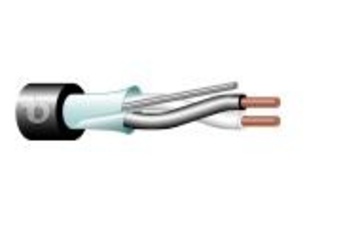

    		TELDOR-8B2P102XXX

    商品編號: Teldor-8B2P102xxx

    Teldor-8B2P102xxx 2Cx12 AWG 600V Overall Shielded Instrumentation Cable隔離儀表訊號控制線纜


    2x12 AWG 600V Overall Shielded Instrumentation Cable

    Part Number:
    8B2P102xxx
    　
    Applications: Process control industry, Hazardous areas, Harsh environments, Direct burial, Class 1 Division 2
    General Construction: 1 twisted pair,  overall polyester/aluminum tape shielded and outer PVC jacketed.
    Outer Jacket Material: FR-PVC
    Outer Diameter: 12.5 mm nom.
    Weight: 185 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 12 AWG
    Conductor Construction: 7x0.81 mm
    Insulation Material: FR-PVC -55°C to 105°C rating
    Insulation O.D.: 4.75 mm nom.
    Conductor Color Code: Black, White
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Thickness: 24 µm
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 16 AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 2
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 6.2 Ω/km@20°C
    Min. Insulation Resistance : 200 MΩ•km
    Voltage Rating: 600 V
    Min. Bend Radius: 75 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
