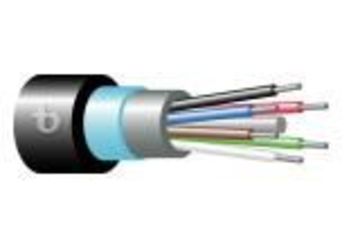

    Teldor-8A0R304101 4Cx10 AWG XLPE 600V Direct Burial Control Cable XLPE可直埋控制電纜
    看原圖
    		TELDOR-8A0R304101


    商品編號: Teldor-8A0R304101

    Teldor-8A0R304101 4Cx10 AWG XLPE 600V Direct Burial Control Cable XLPE可直埋控制電纜


    4x10 AWG XLPE 600V Direct Burial Control Cable

    Part Number:
    8A0R304101
    　
    Applications: Process control industry, Hazardous areas, Harsh environments, Outdoor, Direct burial
    General Construction: 4-10 AWG XLPE insulated wires, cabled together, inner PVC jacket and outer FRPE jacket bonded to aluminum tape (Moisture Barier).
    Outer Jacket Material: FR-PE
    Outer Diameter: 17.5 mm nom.
    Weight: 415 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 10 AWG
    Conductor Construction: 7x1.04 mm
    Insulation Material: XLPE
    Insulation O.D.: 4.6 mm nom.
    Conductor Color Code: Black, numbered
    Inner Jacket Material: FR-PVC
    Inner Jacket Thickness: 1.2 mm
    Inner Jacket Diameter: 13.5 mm nom
    Inner Jacket Color: Black
    Total number of wires: 4
    Moisture Barrier: Yes
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1
    Performance
    Max. DC Resistance : 3.6 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 600 V
    Min. Bend Radius: 210 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
