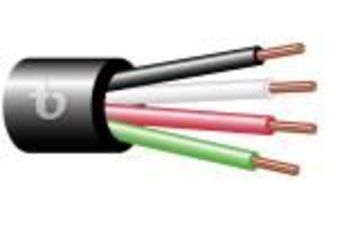

    Teldor-8A49012101 12Cx14 AWG XLPE 600V Control Cable XLPE控制電纜
    看原圖
    		TELDOR-8A49012101

    商品編號: Teldor-8A49012101

    Teldor-8A49012101 12Cx14 AWG XLPE 600V Control Cable XLPE控制電纜


    12x14 AWG XLPE 600V Control Cable

    Part Number:
    8A49012101
    　
    Applications: Process control industry, Hazardous areas, Harsh environments, Outdoor
    General Construction: 12-14 AWG XLPE insulated wires, cabled together and PVC jacketed.
    Outer Jacket Material: FR-PVC ST2 per IEC 60502
    Outer Diameter: 17.5 mm nom.
    Weight: 455 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 14 AWG
    Conductor Construction: 7x0.61 mm
    Insulation Material: XLPE
    Insulation O.D.: 3.4 mm nom.
    Conductor Color Code: Color Code:
    Total number of wires: 12
    Outer Jacket Thickness: 1.6 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3
    Performance
    Max. DC Resistance : 9.6 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 600 V
    Min. Bend Radius: 105 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
