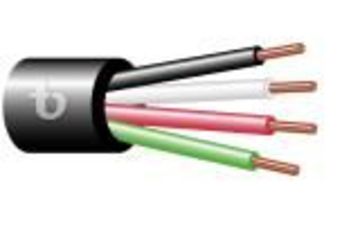

    Teldor-8BD9104xxx 4Cx16 AWG 600V Unshielded Control Cable無隔離控制電纜
    看原圖
    		TELDOR-8BD9104XXX

    商品編號: Teldor-8BD9104xxx

    Teldor-8BD9104xxx 4Cx16 AWG 600V Unshielded Control Cable無隔離控制電纜


    4x16 AWG 600V Unshielded Control Cable

    Part Number:
    8BD9104xxx
    　
    Applications: Process control industry, Short-range low-frequency signals, Indoor, Outdoor
    General Construction:
    4 wires are cabled together and PVC jacketed.
    The wires are  600 Volts and  105°C rated per MIL-W-16878.
    　
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 7.4 mm nom.
    Weight: 90 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 14 AWG
    Conductor Construction: 19x0.287 mm
    Insulation Material: FR-PVC -55°C to 105°C rating
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 2.3 mm nom.
    Pair Identification: Colors
    Conductor Color Code: Color Code:
    Total number of wires: 4
    Outer Jacket Thickness: 0.9 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 15.8 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Min. Bend Radius: 45 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
