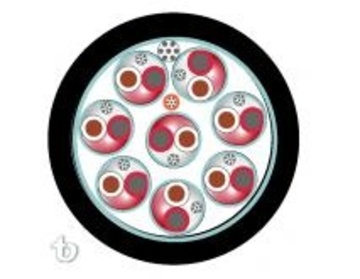

    Teldor- 8012X08xxx 8P補償導線THERMOCOUPLE EXTENSION CABLE 8x2x20 AWG INDIVIDUAL and OVERALL SHIELDED
    看原圖
    		TELDOR-8012X08XXX

    商品編號: Teldor-8012X08xxx

    Teldor- 8012X08xxx 8P補償導線THERMOCOUPLE EXTENSION CABLE 8x2x20 AWG INDIVIDUAL and OVERALL SHIELDED


    THERMOCOUPLE EXTENSION CABLE 8x2x20 AWG INDIVIDUAL and OVERALL SHIELDED

    Part Number:
    8012X08xxx
    　
    Applications: Process control industry, Hazardous areas, Thermocouple extension, Harsh environments, Class 1 Division 2
    General Construction: 8 - 20 AWG PVC insulated thermocouple extension pairs , individual and overall shielded with polyester/aluminum foil and outer PVC jacket.
    Replace the fifth digit in TELDOR P/N with:
    1 - for EX, 3 for KX, 4 for RX, 8 for JX, 9 for TX thermocouple type
    Color code for conductors and jacket per ANCI MC96.1

    　
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 12.5 mm nom.
    Weight: 225 kg/km
    Design & Materials
    Conductor Material: Thermocouple
    Conductor Size: 20 AWG
    Conductor Size: 0.81 mm
    Conductor Construction: Solid
    Insulation Material: FR-PVC -55°C to 105°C rating
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 1.6 mm nom.
    Color code: Per ANSI MC96.1
    Conductor Color Code: Colors + numbers
    Lay Length: 50 mm
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Ind. Shield Thickness: 23 µ
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Solid
    Drain-wire 1 size mm.: 0.6 mm
    Comm. Wire: 22 AWG - Orange
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 16
    Total number of conductor units: 8
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Min. Insulation Resistance : 200 MΩ•km
    Voltage Rating: 300 V
    Min. Bend Radius: 75 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
