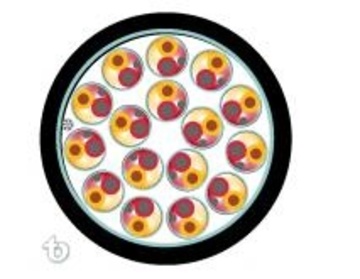

    Teldor-8022X16xxx 16P可直埋補償導線THERMOCOUPLE EXTENSION CABLE 16x2x20 AWG INDIVIDUAL and OVERALL SHIELDED with Moisture Barrier
    看原圖
    		TELDOR-8022X16XXX

    商品編號: Teldor-8022X16xxx

    Teldor-8022X16xxx 16P可直埋補償導線THERMOCOUPLE EXTENSION CABLE 16x2x20 AWG INDIVIDUAL and OVERALL SHIELDED with Moisture Barrier


    Direct Burial Thermocouple Extension Cable 16x2x20 AWG Overall Shielded with Moisture Barrier

    Part Number:
    8022X16xxx
    　
    Applications: Process control industry, Hazardous areas, Thermocouple extension, Harsh environments, Direct burial, Class 1 Division 2
    General Construction: 16 PVC insulated thermocouple extension pairs, cabled together, overall shelded with polyester/aluminum foil, inner PVC jacket, moisture barrier of aluminum tape bonded to FR PE jacket.
    Replace the fifth digit in TELDOR P/N with:
    1 - for EX, 3 for KX, 4 for RX, 8 for JX, 9 for TX thermocouple type
    Color code for conductors and jacket per ANCI MC96.1

    　
    Outer Jacket Material: FR-PE
    Outer Diameter: 20.5 mm nom.
    Weight: 460 kg/km
    Design & Materials
    Conductor Material: Thermocouple
    Conductor Size: 20 AWG
    Conductor Size: 0.81 mm
    Conductor Construction: Solid
    Insulation Material: FR-PVC -55°C to 105°C rating
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 1.6 mm nom.
    Conductor unit identification: Numbered
    Color code: Per ANSI MC96.1
    Lay Length: 50 mm
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 AWG
    Overall Drain-wire Construction: Stranded
    Inner Jacket Material: FR-PVC
    Inner Jacket Thickness: 1.6 mm
    Inner Jacket Diameter: 16.0 mm
    Inner Jacket Color: Black
    Moisture Barrier: Yes
    Outer Jacket Thickness: 1.6 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Min. Insulation Resistance : 200 MΩ•km
    Voltage Rating: 300 V
    Min. Bend Radius: 245 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
