TELDOR-80743H1101

商品編號: Teldor-80743H1101

Teldor-80743H1101 K Type 1P可直埋補償導線DIRECT BURIAL ARMORED THERMOCOUPLE TYPE KX EXTENSION CABLE 1x2x16 AWG OVERALL SHIELDED

DIRECT BURIAL ARMORED THERMOCOUPLE TYPE KX EXTENSION CABLE 1x2x16 AWG OVERALL SHIELDED

Part Number:	80743H1101 Jacket Color and the Teldor P/N

Applications:	Process control industry, Hazardous areas, Thermocouple extension, Harsh environments, Class 1 Division 2

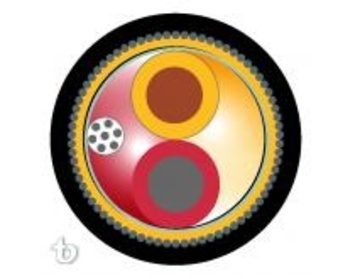

General Construction:	PVC insulated thermocouple extension pair, overall shelded with polyester/aluminum foil, inner HFFR jacket, Steel Wire Armor (Rodent Protection) and outer HFFR jacket. Color code for conductors and jaket per ANCI MC96.1
Outer Jacket Material:	HFFR
Outer Diameter:	10.5 mm nom.
Weight:	240 kg/km

Design & Materials

Conductor Material:	Thermocouple
Conductor Size:	16 AWG
Conductor Size:	1.29 mm
Conductor Construction:	Solid
Insulation Material:	FR-PVC -55°C to 105°C rating
Insulation Thickness:	0.4 mm
Insulation O.D.:	2.1 mm nom.
Color code:	Per ANSI MC96.1
Conductor Color Code:	Yellow x Red
Lay Length:	60 mm
Overall Shield Design:	100% Coverage
Overall Shield Material:	Aluminum/Polyester Foil
Overall Drain-wire Material:	Tinned Copper
Overall Drain-wire size:	20 AWG
Overall Drain-wire Construction:	Stranded
Inner Jacket Material:	FR-PVC
Inner Jacket Diameter:	6.1 mm
Inner Jacket Color:	Yellow
Armor:	Yes
Armoring:	Served Wire
Outer Jacket Thickness:	1.3 mm nom.
Outer Jacket Color:	Black
Marking:	Per request

Standards

Standards:	RoHS 2002/95/EC
Flamability Rating:	IEC 60332-3 , IEEE 383

Performance

Dielectric Strength:	2000 V/minute
Dielectric Strength to Shield:	1000 V/minute
Min. Insulation Resistance :	200 MΩ•km
Voltage Rating:	300 V
Min. Bend Radius:	125 mm
Max. Operating Temperature:	+80 °C
Min. Operating Temperature:	-30 °C
UV resistance:	Yes
