    Teldor-8092X16xxx 16P補償導線THERMOCOUPLE EXTENSION CABLE 16x2x20 AWG OVERALL SHIELDED

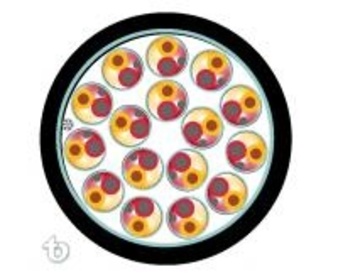

    看原圖
    		TELDOR-8092X16XXX

    商品編號: Teldor-8092X16xxx

    Teldor-8092X16xxx 16P補償導線THERMOCOUPLE EXTENSION CABLE 16x2x20 AWG OVERALL SHIELDED


    THERMOCOUPLE EXTENSION CABLE 16x2x20 AWG OVERALL SHIELDED

    Part Number:
    8092X16xxx
    　
    Applications: Process control industry, Hazardous areas, Thermocouple extension, Harsh environments, Class 1 Division 2
    General Construction:
    16 pairs, PVC insulated thermocouple extension cable,  overall shelded with polyester/aluminum foil and jacketed with  PVC.
    Replace the fifth digint in TELDOR P/N with:
    1 - for EX, 3 for KX, 4 for RX, 8 for JX, 9 for TX thermocouple type
    Color code for conductors and jaket per ANCI MC96.1
    Outer Jacket Material: FR-PVC
    Outer Diameter: 16.0 mm nom.
    Weight: 330 kg/km
    Design & Materials
    Conductor Material: Thermocouple
    Conductor Size: 20 AWG
    Conductor Size: 0.81 mm
    Conductor Construction: Solid
    Insulation Material: FR-PVC -55°C to 105°C rating
    Insulation Thickness: 0.4 mm
    Insulation O.D.: 1.60 mm nom.
    Pair Identification: Color+Number
    Lay Length: 50 mm
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 AWG
    Overall Drain-wire Construction: Stranded
    Outer Jacket Thickness: 1.6 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3
    Performance
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Min. Insulation Resistance : 200 MΩ•km
    Voltage Rating: 300 V
    Min. Bend Radius: 95 mm
    Max. Operating Temperature: +90 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
