TELDOR-8112102108

商品編號: Teldor-8112102108

Teldor-8112102108 2P耐高溫補償導線2x2x20 AWG ETFE (Tefzel) Insulated Individual Shielded Thermocouple Extension Cable Type EX

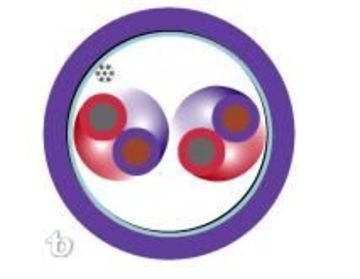

2x2x20 AWG ETFE (Tefzel) Insulated Individual Shielded Thermocouple Extension Cable Type EX

Part Number:	8112102108 Jacket Color and the Teldor P/N

Applications:	Process control industry, Harsh environments, Power stations
General Construction:	Thermocouple extension cable designed for power stations, having high mechanical strength and temperature rating of -50°C to +150ºC. Thermocouples are paired and calibrated according to ANSI MC96.1.
Outer Jacket Material:	FR-PVC ST2 per IEC 60502
Outer Diameter:	9.0 mm nom.
Weight:	85 kg/km

Design & Materials

Conductor Material:	Thermocouple
Conductor Size:	EX 20 AWG
Conductor Size:	0.81 mm
Conductor Construction:	Solid
Insulation Material:	ETFE
Insulation O.D.:	1.60 mm nom.
Pair Identification:	Numbered
Conductor Color Code:	Violet x Red
Lay Length:	50 mm
Ind. Shield Material:	Aluminum/Polyester Foil
Ind. Shield Design:	100% Coverage
Ind. Shield Thickness:	32 µ
Drain-wire 1 Material:	Tinned Copper
Drain-wire 1 Construction:	Stranded
Drain-wire 1 size:	22 AWG
Total number of wires:	4
Total number of conductor units:	2
Outer Jacket Thickness:	1.3 mm nom.
Outer Jacket Color:	Violet
Marking:	Per request

Standards

Standards:	RoHS 2002/95/EC
Flamability Rating:	IEC 60332-3 , IEEE 383
