    TE(Tyco)- Solar Cable 2.5, 4, 6, (mm2) TÜV UL approved 雙認證太陽能電線
    看原圖
    		TE-PVW

    TE-PVW

    TE(Tyco)- Solar Cable (2.5, 4, 6, mm2) TÜV, UL approved PV Cable, 美歐規雙認證雙絕緣太陽能電線

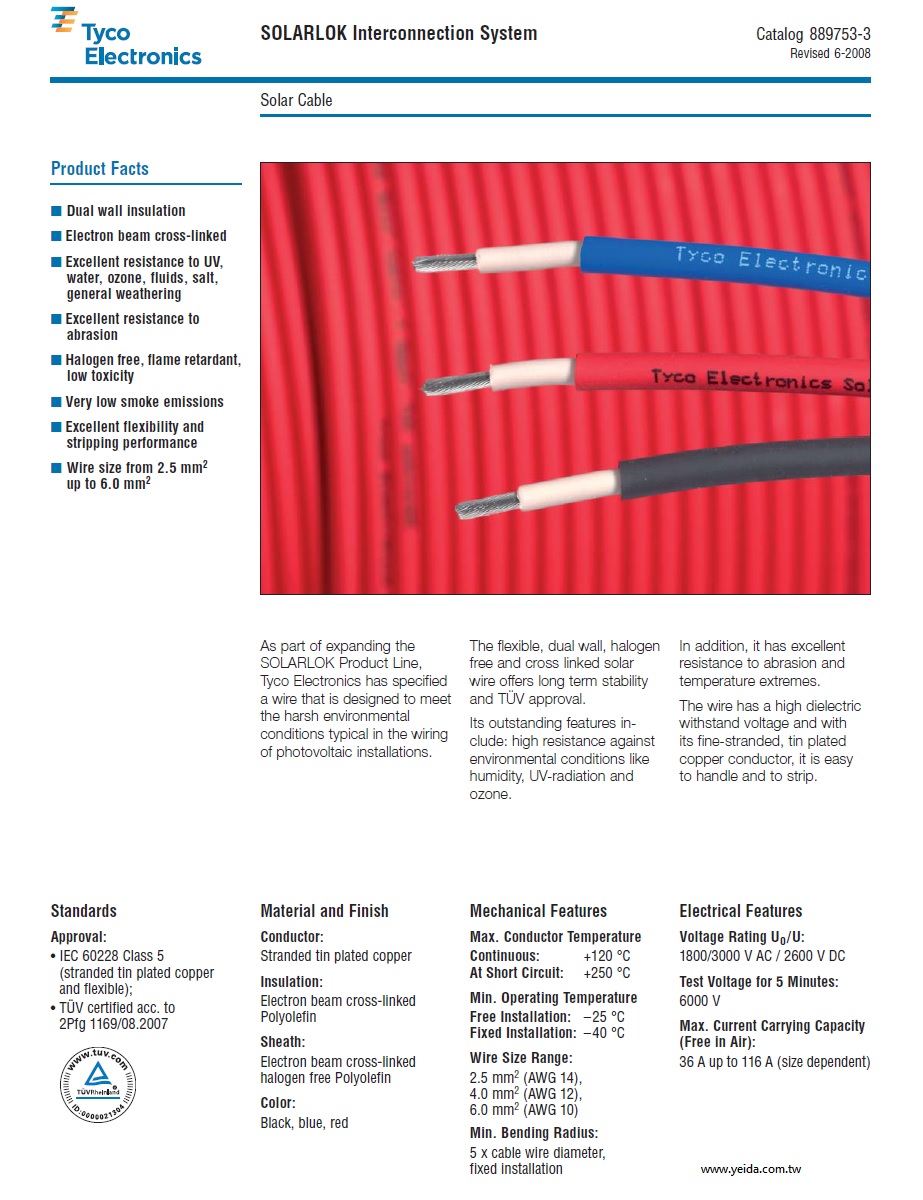

    Product Facts

    ■ Dual wall insulation
    ■ Electron beam cross-linked
    ■ Excellent resistance to UV,
    water, ozone, fluids, salt,
    general weathering
    ■ Excellent resistance to
    abrasion
    ■ Halogen free, flame retardant,
    low toxicity
    ■ Very low smoke emissions
    ■ Excellent flexibility and
    stripping performance
    ■ Wire size from 2.5 mm2
    up to 6.0 mm2

    As part of expanding the
    SOLARLOK Product Line,
    Tyco Electronics has specified
    a wire that is designed to meet
    the harsh environmental
    conditions typical in the wiring
    of photovoltaic installations.

    The flexible, dual wall, halogen
    free and cross linked solar
    wire offers long term stability
    and TÜV approval.
    Its outstanding features include:
    high resistance against
    environmental conditions like
    humidity, UV-radiation and
    ozone.

    In addition, it has excellent
    resistance to abrasion and
    temperature extremes.
    The wire has a high dielectric
    withstand voltage and with
    its fine-stranded, tin plated
    copper conductor, it is easy
    to handle and to strip.

    Standards Approval:

    • IEC 60228 Class 5
    (stranded tin plated copper
    and flexible);
    • TÜV certified acc. to
    2Pfg 1169/08.2007

    Material and Finish

    Conductor:  Stranded tin plated copper
    Insulation:  Electron beam cross-linked
                       Polyolefin
    Sheath:  Electron beam cross-linked halogen free Polyolefin
    Color:    Black, blue, red


    Electrical Features

    Voltage Rating UO/U:  1800/3000 V AC / 2600 V DC
    Test Voltage for 5 Minutes:  6000 V
    Max. Current Carrying Capacity
    (Free in Air):  36 A up to 116 A (size dependent)

    Mechanical Features


    Max. Conductor Temperature
    Continuous:   +120 °C
    At Short Circuit:   +250 °C
    Min. Operating Temperature
    Free Installation:   –25 °C
    Fixed Installation:  –40 °C

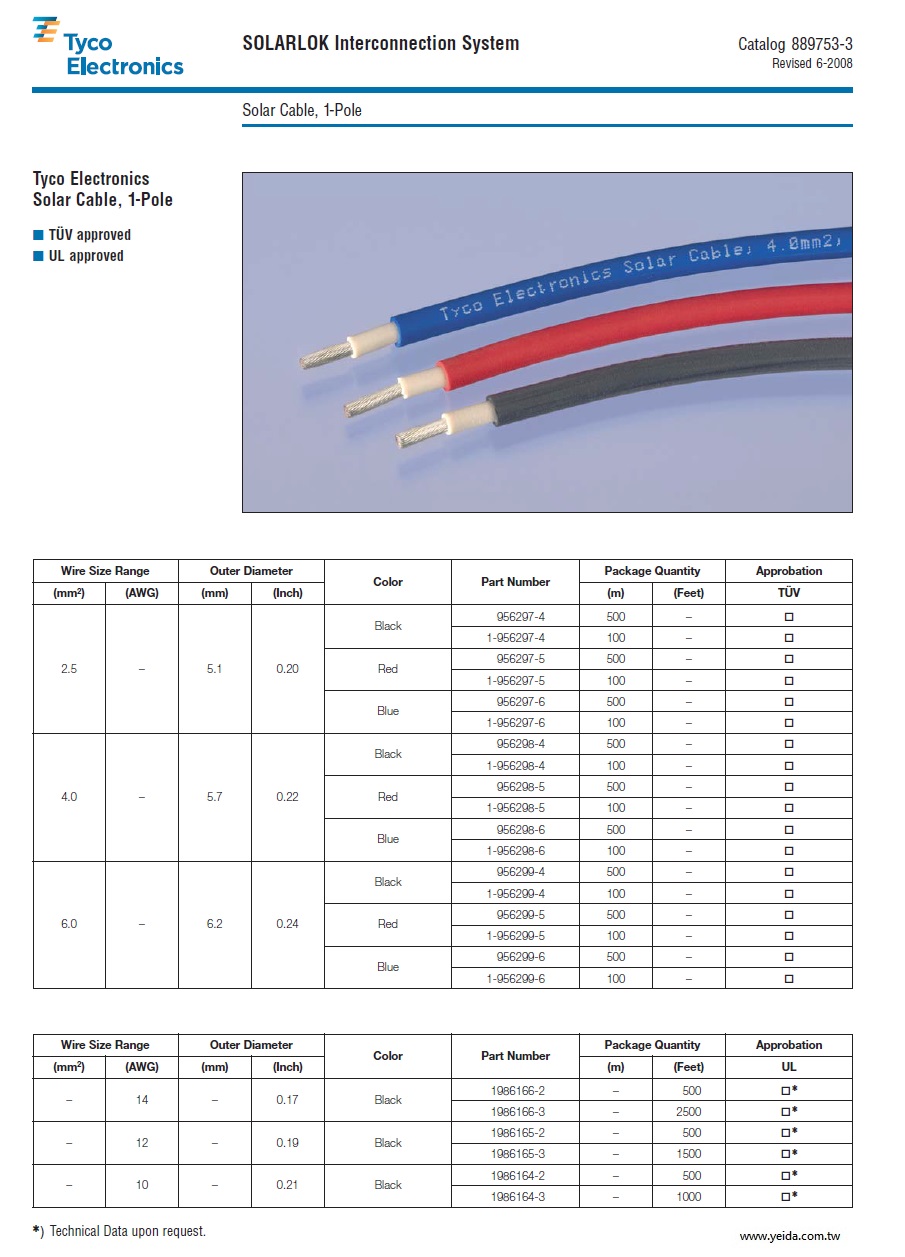

    Wire Size Range:


    2.5 mm2 (AWG 14),
    4.0 mm2 (AWG 12),
    6.0 mm2 (AWG 10)
    Min. Bending Radius:  5 x cable wire diameter,
    fixed installation
