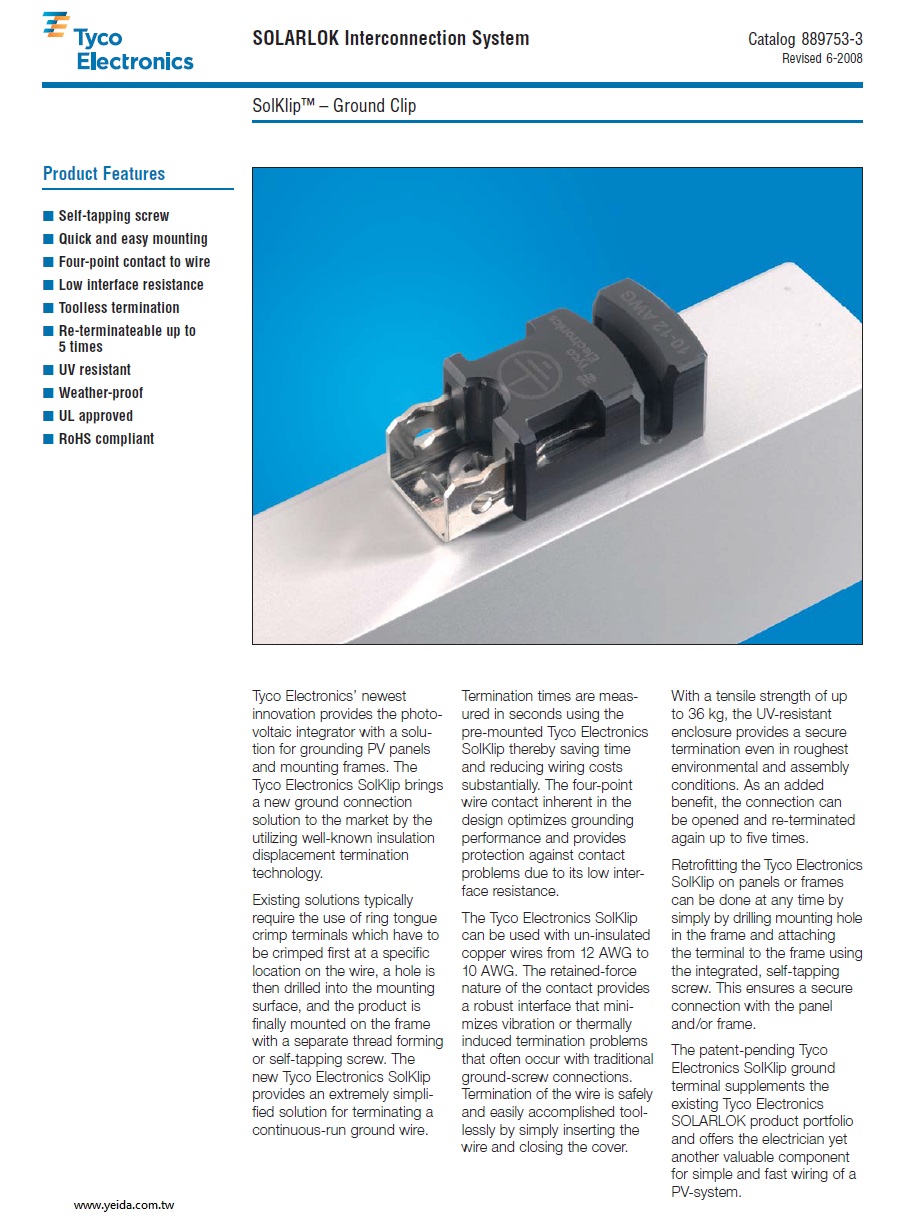

TE(Tyco)-SolKlip™ 1954381-1– Ground Clip SOLARLOK Interconnection System 太陽能發電系統接地夾

Product Features
■ Self-tapping screw
■ Quick and easy mounting
■ Four-point contact to wire
■ Low interface resistance
■ Toolless termination
■ Re-terminateable up to
5 times
■ UV resistant
■ Weather-proof
■ UL approved
■ RoHS compliant

Description

SolKlip ground clips are designed
for solar panel grounding applications
using solid un-insulated
copper 10 AWG and 12 AWG.

Applications
Solar panels and related products
that require grounding for safety
reasons.
Applications include: wire
jumpers between solar panels,
solar roof tiles and between
panels and the AC/DC inverters.

Electrical
The electrical performance of
this product will meet the tough
requirements of photovoltaic
grounding applications.
Product Offering & Dimensions
SolKlip for Solar Grounding
Part No. 1954381-1 to handle
12–10 AWG solid, un-insulated
ground wire.

Application Tooling
No special tooling required.
Standards and Specifications
SolKlip Grounding Clip:
UL 467 pending, a requirement
for UL 1703 solar panel listing.
UL 486A-B pending, also a
requirement as part of the
UL 1703 approval listing.

Materials
Housing:
Durable PPT
Contact:
High conductivity copper alloy

Mechanical
The mechanical properties of
this product will meet the tough
requirements for grounding
applications layed down in the
UL requirements.

Tyco Electronics’ newest
innovation provides the photovoltaic
integrator with a solution
for grounding PV panels
and mounting frames. The
Tyco Electronics SolKlip brings
a new ground connection
solution to the market by the
utilizing well-known insulation
displacement termination
technology.

Existing solutions typically
require the use of ring tongue
crimp terminals which have to
be crimped first at a specific
location on the wire, a hole is
then drilled into the mounting
surface, and the product is
finally mounted on the frame
with a separate thread forming
or self-tapping screw. The
new Tyco Electronics SolKlip
provides an extremely simplified
solution for terminating a
continuous-run ground wire.
Termination times are measured
in seconds using the
pre-mounted Tyco Electronics
SolKlip thereby saving time
and reducing wiring costs
substantially. The four-point
wire contact inherent in the
design optimizes grounding
performance and provides
protection against contact
problems due to its low interface
resistance.

The Tyco Electronics SolKlip
can be used with un-insulated
copper wires from 12 AWG to
10 AWG. The retained-force
nature of the contact provides
a robust interface that minimizes
vibration or thermally
induced termination problems
that often occur with traditional
ground-screw connections.
Termination of the wire is safely
and easily accomplished toollessly
by simply inserting the
wire and closing the cover.
With a tensile strength of up
to 36 kg, the UV-resistant
enclosure provides a secure
termination even in roughest
environmental and assembly
conditions. As an added
benefit, the connection can
be opened and re-terminated
again up to five times.

Retrofitting the Tyco Electronics
SolKlip on panels or frames
can be done at any time by
simply by drilling mounting hole
in the frame and attaching
the terminal to the frame using
the integrated, self-tapping
screw. This ensures a secure
connection with the panel
and/or frame.

The patent-pending Tyco
Electronics SolKlip ground
terminal supplements the
existing Tyco Electronics
SOLARLOK product portfolio
