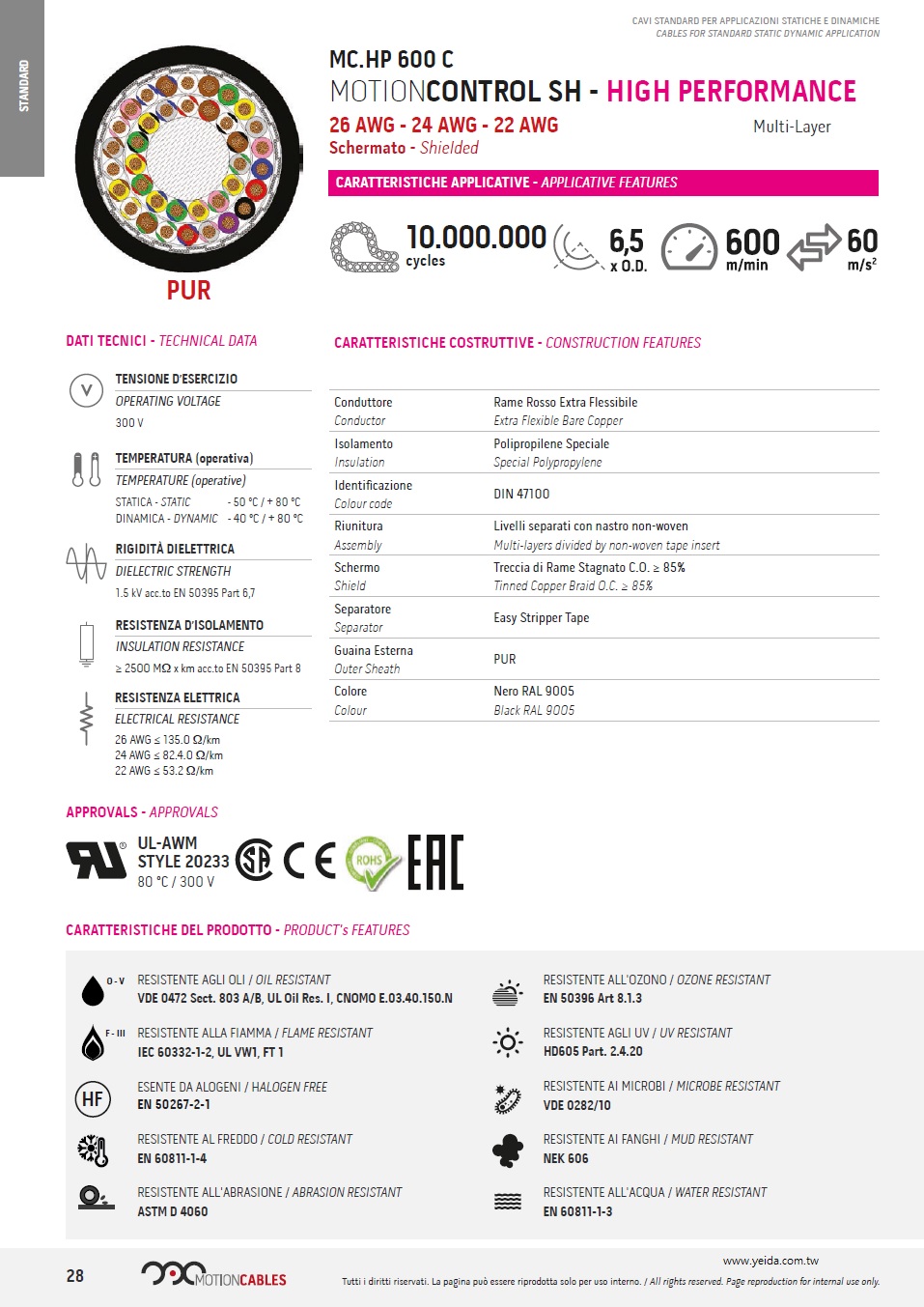

MC-HP600C,

MOTIONCONTROL SH - HIGH PERFORMANCE, AWG(26, 24, 22)  Multi-Layer Shielded, UL20233, 300V, PUR 一千萬週期高性能低溫超柔性移動式訊號控制屏蔽隔離電纜 (耐油, 阻燃, 低溫超柔性動態, 高速托鍊, 耐磨損臭氧, 無鹵, 防水, 抗紫外線微生物)

CARATTERISTICHE COSTRUTTIVE - CONSTRUCTION FEATURES
Conductor
Extra Flexible Bare Copper
Insulation
Special Polypropylene
Colour code
DIN 47100
Assembly
Multi-layers divided by non-woven tape insert
Shield
Tinned Copper Braid O.C. ≥ 85%
Separator
Easy Stripper Tape
Outer Sheath
PUR
Colour
Black RAL 9005

CARATTERISTICHE DEL PRODOTTO - PRODUCT's FEATURES

TEMPERATURE (operative)
STATICA - STATIC - 50 °C / + 80 °C

COLD RESISTANT
EN 60811-1-4

ABRASION RESISTANT
ASTM D 4060

OZONE RESISTANT
EN 50396 Art 8.1.3

UV RESISTANT
HD605 Part. 2.4.20

MICROBE RESISTANT
VDE 0282/10

MUD RESISTANT
NEK 606

WATER RESISTANT
EN 60811-1-3

OIL RESISTANT
VDE 0472 Sect. 803 A/B, UL Oil Res. I, CNOMO E.03.40.150.N

FLAME RESISTANT
IEC 60332-1-2, UL VW1, FT 1

HALOGEN FREE
EN 50267-2-1

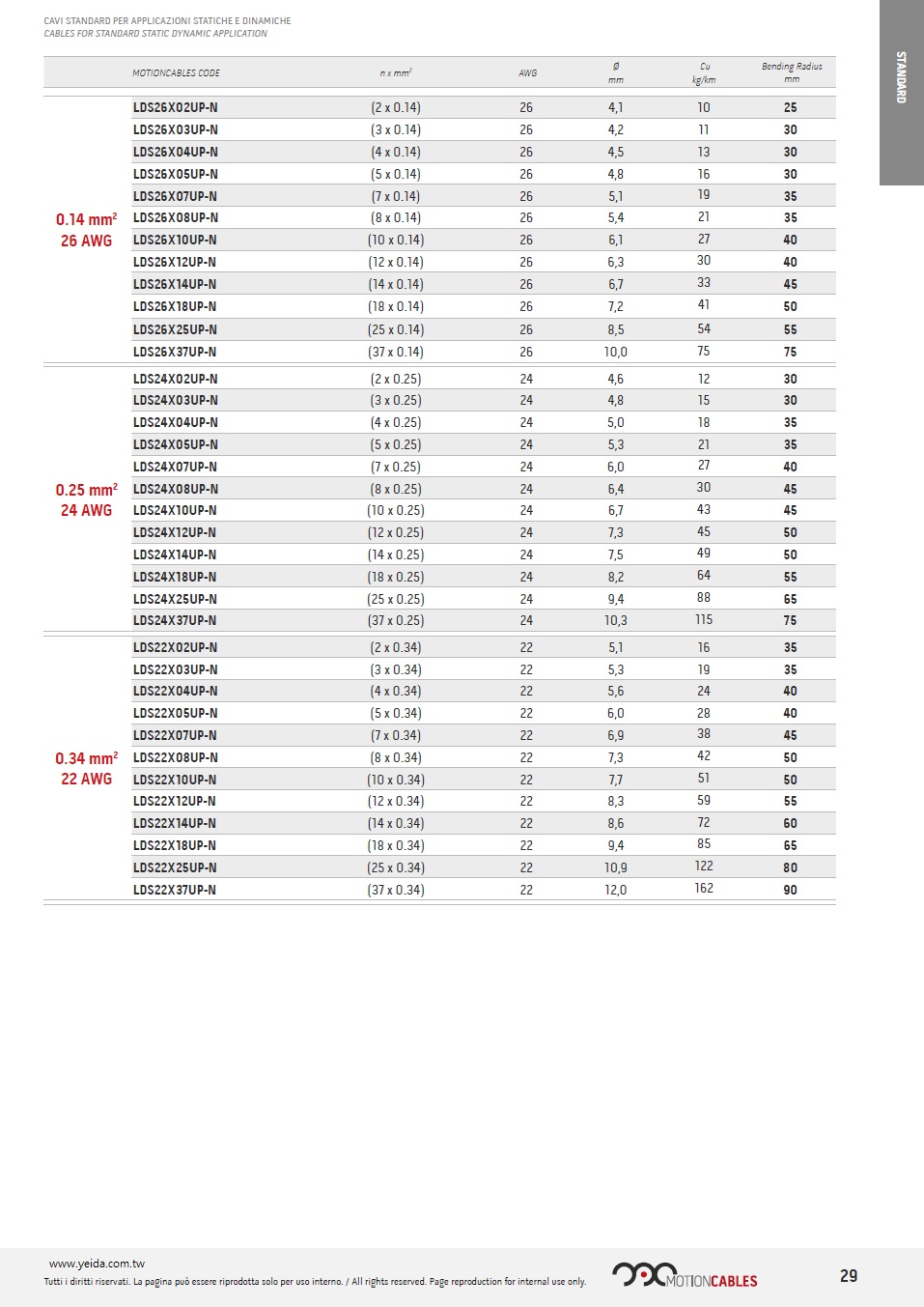

MOTIONCABLES CODE n x mm2 AWG

0.14 mm2
26 AWG
LDS26X02UP-N,  (2 x 0.14) 26 4,1 10 25
LDS26X03UP-N,  (3 x 0.14) 26 4,2 11 30
LDS26X04UP-N,  (4 x 0.14) 26 4,5 13 30
LDS26X05UP-N,  (5 x 0.14) 26 4,8 16 30
LDS26X07UP-N,  (7 x 0.14) 26 5,1 19 35
LDS26X08UP-N,  (8 x 0.14) 26 5,4 21 35
LDS26X10UP-N,  (10 x 0.14) 26 6,1 27 40
LDS26X12UP-N,  (12 x 0.14) 26 6,3 30 40
LDS26X14UP-N,  (14 x 0.14) 26 6,7 33 45
LDS26X18UP-N,  (18 x 0.14) 26 7,2 41 50
LDS26X25UP-N,  (25 x 0.14) 26 8,5 54 55
LDS26X37UP-N,  (37 x 0.14) 26 10,0 75 75
0.25 mm2
24 AWG
LDS24X02UP-N,  (2 x 0.25) 24 4,6 12 30
LDS24X03UP-N,  (3 x 0.25) 24 4,8 15 30
LDS24X04UP-N,  (4 x 0.25) 24 5,0 18 35
LDS24X05UP-N,  (5 x 0.25) 24 5,3 21 35
LDS24X07UP-N,  (7 x 0.25) 24 6,0 27 40
LDS24X08UP-N,  (8 x 0.25) 24 6,4 30 45
LDS24X10UP-N,  (10 x 0.25) 24 6,7 43 45
LDS24X12UP-N,  (12 x 0.25) 24 7,3 45 50
LDS24X14UP-N,  (14 x 0.25) 24 7,5 49 50
LDS24X18UP-N,  (18 x 0.25) 24 8,2 64 55
LDS24X25UP-N,  (25 x 0.25) 24 9,4 88 65
LDS24X37UP-N,  (37 x 0.25) 24 10,3 115 75
0.34 mm2
22 AWG
LDS22X02UP-N,  (2 x 0.34) 22 5,1 16 35
LDS22X03UP-N,  (3 x 0.34) 22 5,3 19 35
LDS22X04UP-N,  (4 x 0.34) 22 5,6 24 40
LDS22X05UP-N,  (5 x 0.34) 22 6,0 28 40
LDS22X07UP-N,  (7 x 0.34) 22 6,9 38 45
LDS22X08UP-N,  (8 x 0.34) 22 7,3 42 50
LDS22X10UP-N,  (10 x 0.34) 22 7,7 51 50
LDS22X12UP-N,  (12 x 0.34) 22 8,3 59 55
LDS22X14UP-N,  (14 x 0.34) 22 8,6 72 60
LDS22X18UP-N,  (18 x 0.34) 22 9,4 85 65
LDS22X25UP-N,  (25 x 0.34) 22 10,9 122 80
LDS22X37UP-N,  (37 x 0.34) 22 12,0 162 90
