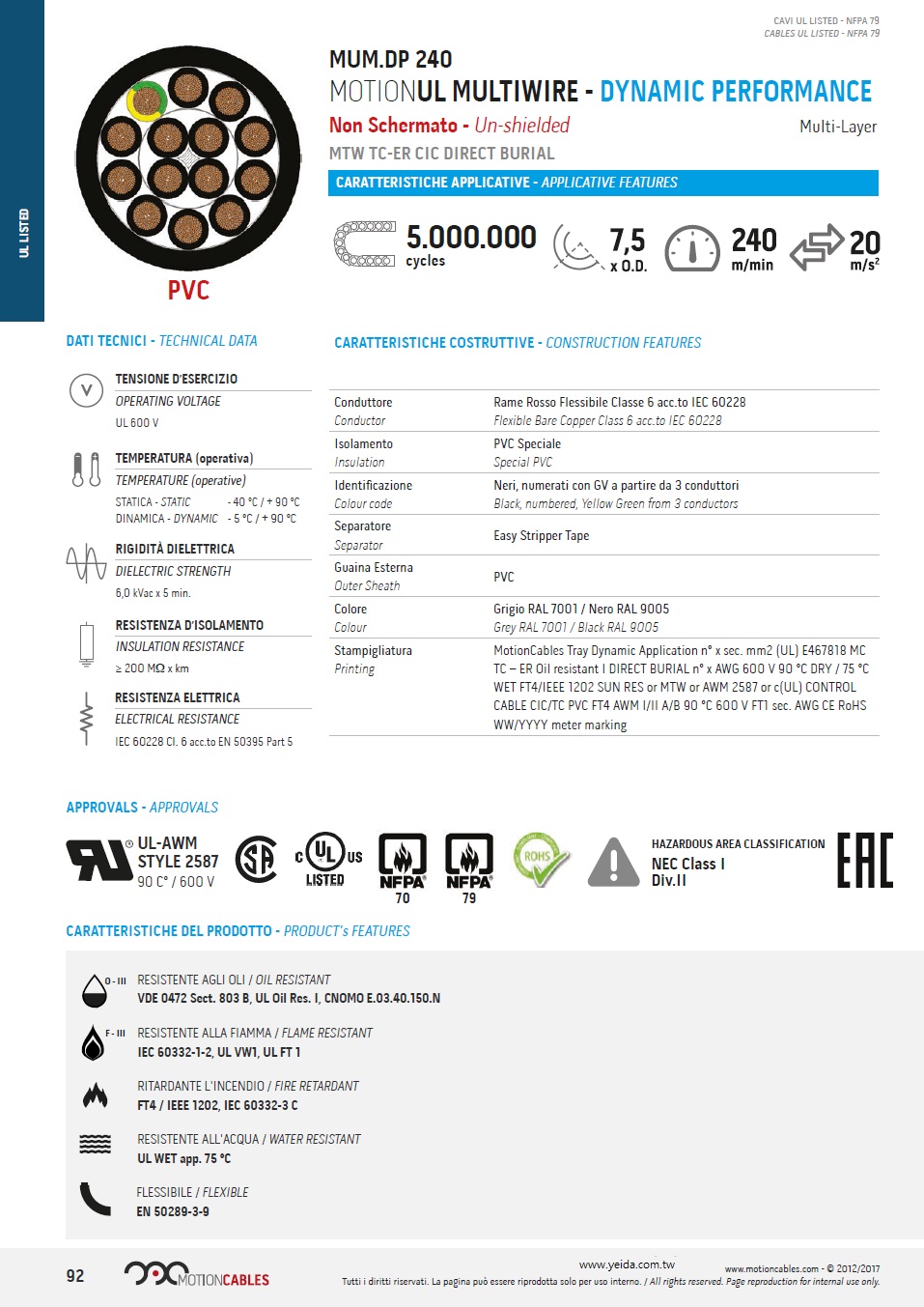

MUM-DP240
MUM.DP 240, MOTIONUL MULTIWIRE - DP, MTW TC-ER CIC DIRECT BURIAL, 5000000 cycles, PVC 超柔軟可五百萬週期移動式, 機床接線, 托盤運行, 可直埋電纜  (耐油, 阻燃, 耐火, 防水)

APPROVALS: UL2587, CSA, NFPA79, NFPA70, ROHS, EAC

CONSTRUCTION FEATURES
Conductor
Flexible Bare Copper Class 6 acc.to IEC 60228

Insulation
Special PVC

Colour code
Black, numbered, Yellow Green from 3 conductors

Separator
Easy Stripper Tape

Outer Sheath
PVC

Colour
Grey RAL 7001 / Black RAL 9005

Printing
MotionCables Tray Dynamic Application n° x sec. mm2 (UL) E467818 MC
TC – ER Oil resistant I DIRECT BURIAL n° x AWG 600 V 90 °C DRY / 75 °C
WET FT4/IEEE 1202 SUN RES or MTW or AWM 2587 or c(UL) CONTROL
CABLE CIC/TC PVC FT4 AWM I/II A/B 90 °C 600 V FT1 sec. AWG CE RoHS
WW/YYYY meter marking

TECHNICAL DATA

PRODUCT's FEATURES
OPERATING VOLTAGE
UL 600 V

TEMPERATURE (operative)
STATIC - 40 °C / + 90 °C
DYNAMIC - 5 °C / + 90 °C

DIELECTRIC STRENGTH
6,0 kVac x 5 min.

INSULATION RESISTANCE
≥ 200 MΩ x km

FIRE RETARDANT
FT4 / IEEE 1202, IEC 60332-3 C

WATER RESISTANT
UL WET app. 75 °C

OIL RESISTANT
VDE 0472 Sect. 803 B, UL Oil Res. I, CNOMO E.03.40.150.N

FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

ELECTRICAL RESISTANCE
IEC 60228 Cl. 6 acc.to EN 50395 Part 5

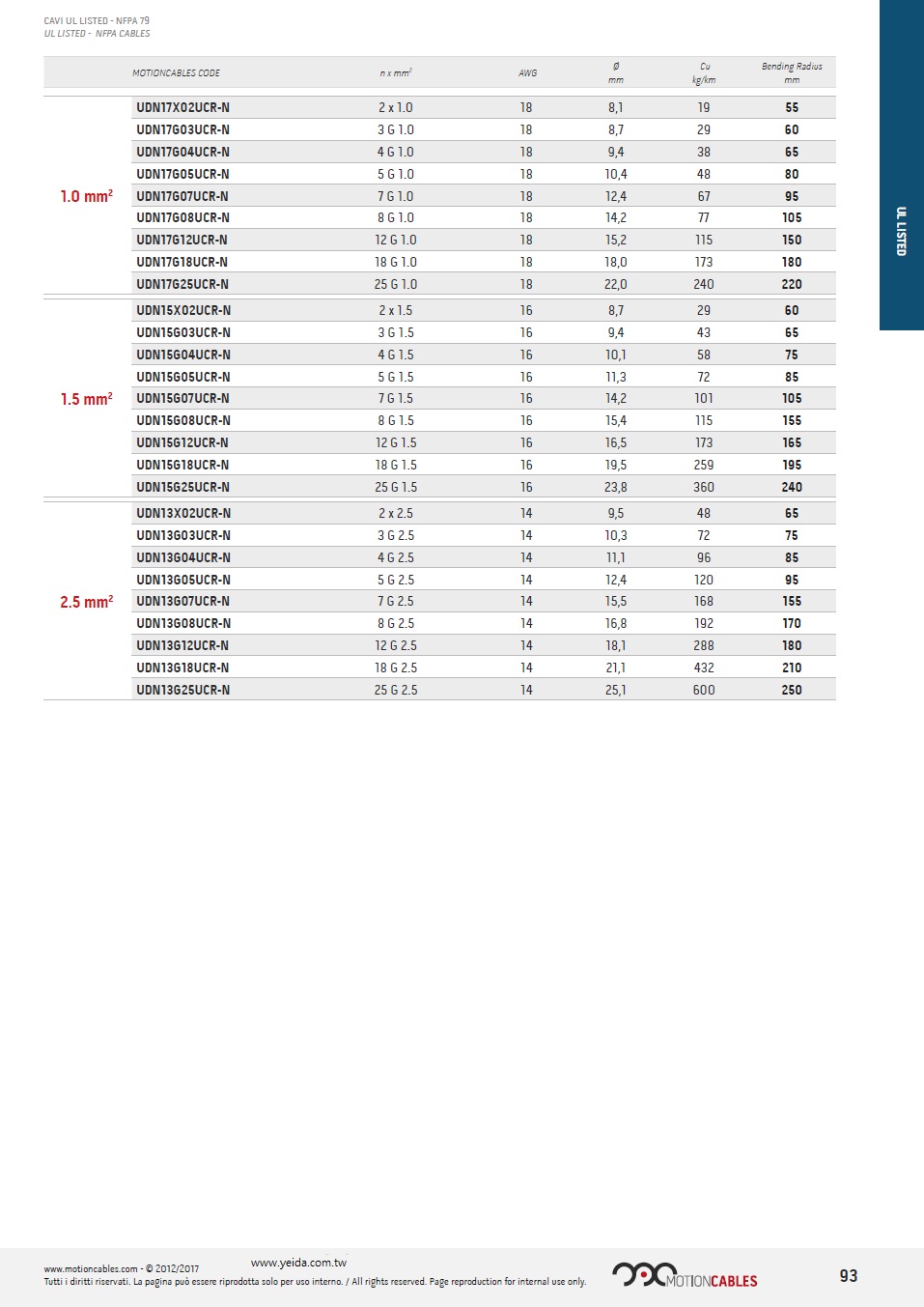

MOTIONCABLES CODE n x mm2 AWG

1.0 mm2
UDN17X02UCR-N,  2 x 1.0 18 8,1 19 55
UDN17G03UCR-N,  3 G 1.0 18 8,7 29 60
UDN17G04UCR-N,  4 G 1.0 18 9,4 38 65
UDN17G05UCR-N,  5 G 1.0 18 10,4 48 80
UDN17G07UCR-N,  7 G 1.0 18 12,4 67 95
UDN17G08UCR-N,  8 G 1.0 18 14,2 77 105
UDN17G12UCR-N,  12 G 1.0 18 15,2 115 150
UDN17G18UCR-N,  18 G 1.0 18 18,0 173 180
UDN17G25UCR-N,  25 G 1.0 18 22,0 240 220
1.5 mm2
UDN15X02UCR-N,  2 x 1.5 16 8,7 29 60
UDN15G03UCR-N,  3 G 1.5 16 9,4 43 65
UDN15G04UCR-N,  4 G 1.5 16 10,1 58 75
UDN15G05UCR-N,  5 G 1.5 16 11,3 72 85
UDN15G07UCR-N,  7 G 1.5 16 14,2 101 105
UDN15G08UCR-N,  8 G 1.5 16 15,4 115 155
UDN15G12UCR-N,  12 G 1.5 16 16,5 173 165
UDN15G18UCR-N,  18 G 1.5 16 19,5 259 195
UDN15G25UCR-N,  25 G 1.5 16 23,8 360 240
2.5 mm2
UDN13X02UCR-N,  2 x 2.5 14 9,5 48 65
UDN13G03UCR-N,  3 G 2.5 14 10,3 72 75
UDN13G04UCR-N,  4 G 2.5 14 11,1 96 85
UDN13G05UCR-N,  5 G 2.5 14 12,4 120 95
UDN13G07UCR-N,  7 G 2.5 14 15,5 168 155
UDN13G08UCR-N,  8 G 2.5 14 16,8 192 170
UDN13G12UCR-N,  12 G 2.5 14 18,1 288 180
UDN13G18UCR-N,  18 G 2.5 14 21,1 432 210
UDN13G25UCR-N,  25 G 2.5 14 25,1 600 250
