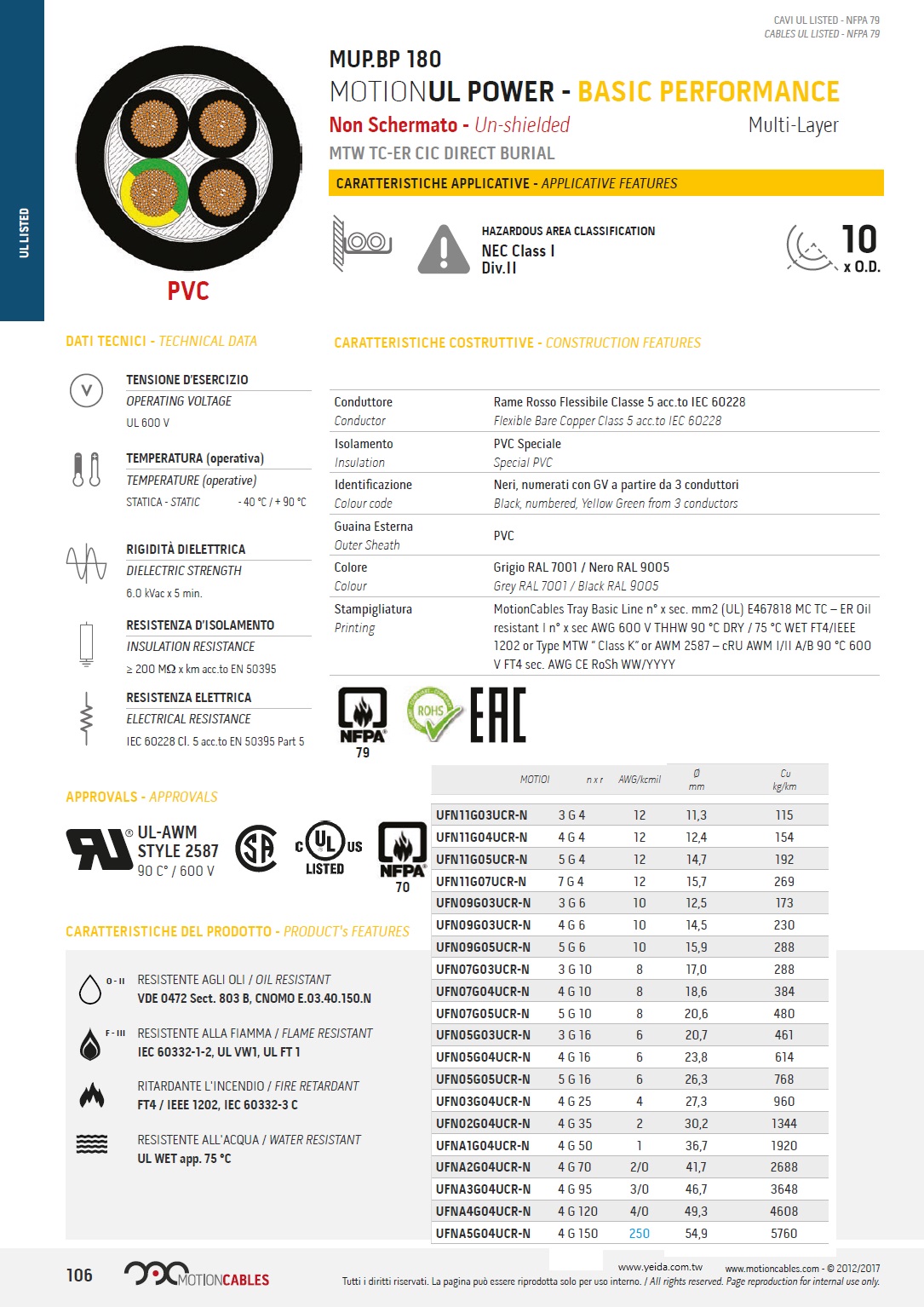

MUP-BP180

MUP.BP 180, MOTIONUL POWER - BP,  MTW TC-ER CIC DIRECT BURIAL,  UL2587,  機床接線, 托盤運行, 可直埋多芯電纜  (耐油, 阻燃, 耐火, 防水)

APPROVALS: UL-AWM STYLE 2587 90 C° / 600 V, NFPA70, NFPA79, CSA, ROHS, EAC,

HAZARDOUS AREA CLASSIFICATION, NEC Class I Div.II (美國國家電氣規範危險區1類2區內運行)

CONSTRUCTION FEATURES
Conductor
Flexible Bare Copper Class 5 acc.to IEC 60228

Insulation
Special PVC

Colour code
Black, numbered, Yellow Green from 3 conductors

Outer Sheath
PVC

Colour
Grey RAL 7001 / Black RAL 9005

Printing
MotionCables Tray Basic Line n° x sec. mm2 (UL) E467818 MC TC – ER Oil
resistant I n° x sec AWG 600 V THHW 90 °C DRY / 75 °C WET FT4/IEEE
1202 or Type MTW “ Class K” or AWM 2587 – cRU AWM I/II A/B 90 °C 600
V FT4 sec. AWG CE RoSh WW/YYYY

TECHNICAL DATA
PRODUCT's FEATURES
FIRE RETARDANT
FT4 / IEEE 1202, IEC 60332-3 C


WATER RESISTANT
UL WET app. 75 °C


OIL RESISTANT
VDE 0472 Sect. 803 B, CNOMO E.03.40.150.N


FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

ELECTRICAL RESISTANCE
IEC 60228 Cl. 5 acc.to EN 50395 Part 5

INSULATION RESISTANCE
≥ 200 MΩ x km acc.to EN 50395

DIELECTRIC STRENGTH
6.0 kVac x 5 min.

TEMPERATURE (operative)
STATICA - STATIC - 40 °C / + 90 °C

OPERATING VOLTAGE
UL 600 V

MOTIONCABLES CODE
UFN11G03UCR-N,  3 G 4 12 11,3 115
UFN11G04UCR-N,  4 G 4 12 12,4 154
UFN11G05UCR-N,  5 G 4 12 14,7 192
UFN11G07UCR-N,  7 G 4 12 15,7 269
UFN09G03UCR-N,  3 G 6 10 12,5 173
UFN09G03UCR-N,  4 G 6 10 14,5 230
UFN09G05UCR-N,  5 G 6 10 15,9 288
UFN07G03UCR-N,  3 G 10 8 17,0 288
UFN07G04UCR-N,  4 G 10 8 18,6 384
UFN07G05UCR-N,  5 G 10 8 20,6 480,
UFN05G03UCR-N,  3 G 16 6 20,7 461
UFN05G04UCR-N,  4 G 16 6 23,8 614
UFN05G05UCR-N,  5 G 16 6 26,3 768
UFN03G04UCR-N,  4 G 25 4 27,3 960
UFN02G04UCR-N,  4 G 35 2 30,2 1344
UFNA1G04UCR-N,  4 G 50 1 36,7 1920
UFNA2G04UCR-N,  4 G 70 2/0 41,7 2688
UFNA3G04UCR-N,  4 G 95 3/0 46,7 3648
UFNA4G04UCR-N,  4 G 120 4/0 49,3 4608
UFNA5G04UCR-N,  4 G 150 250 54,9 5760
