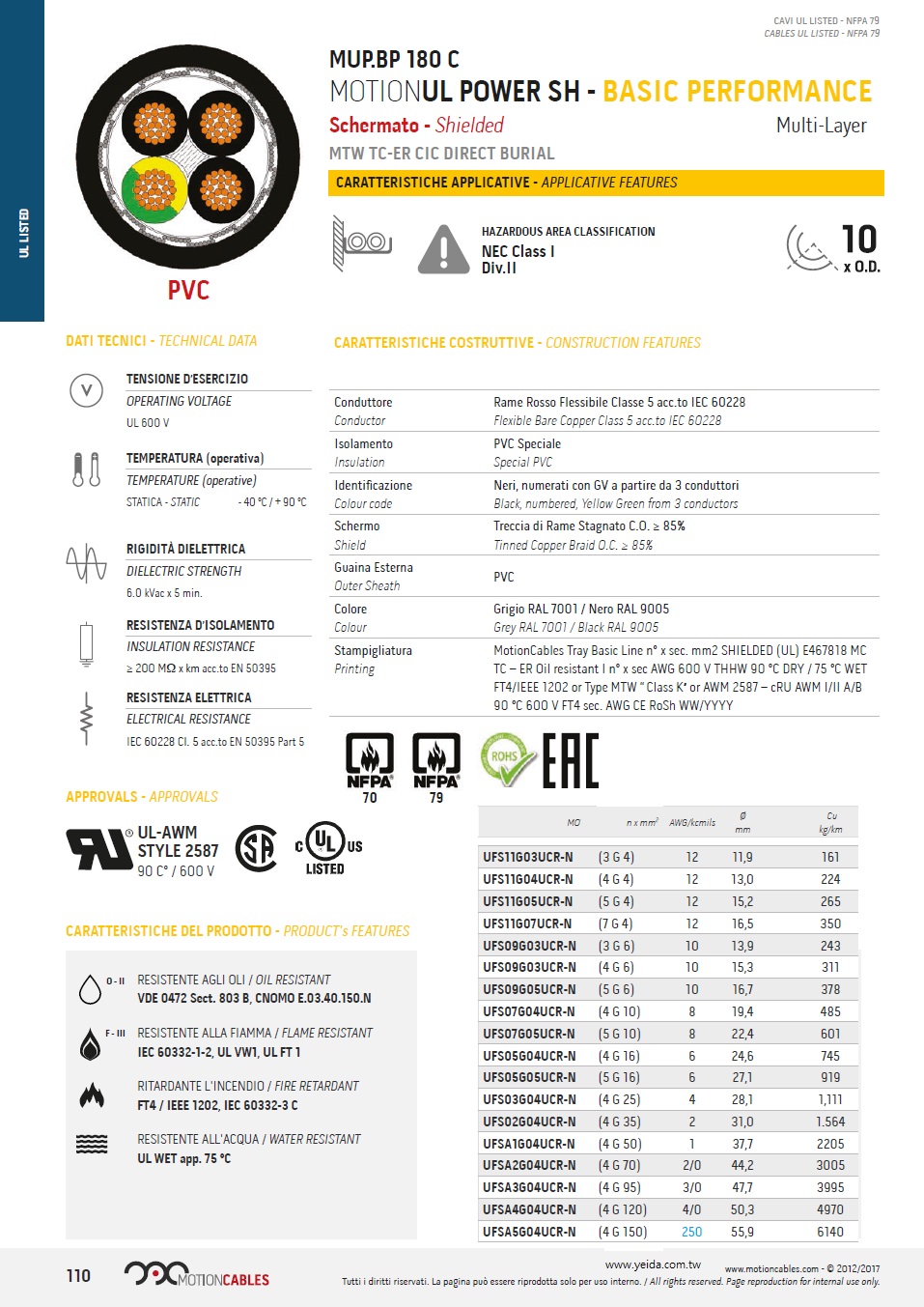

MUP-BP180C

MUP.BP 180 C, MOTIONUL POWER SH - BP, Shielded Multi-Layer, MTW TC-ER CIC DIRECT BURIAL, UL2587,  機床接線, 托盤運行, 可直埋多芯隔離電纜  (耐油, 阻燃, 耐火, 防水)

APPROVALS: UL2587 90 C° / 600 V, NFPA70, NFPA79, CSA, ROHS, EAC,

HAZARDOUS AREA CLASSIFICATION, NEC Class I, Div.II NEC定義危險場所機床連接電纜線

CONSTRUCTION FEATURES
Conductor
Flexible Bare Copper Class 5 acc.to IEC 60228

Insulation
Special PVC

Colour code
Black, numbered, Yellow Green from 3 conductors

Shield
Tinned Copper Braid O.C. ≥ 85%

Outer Sheath
PVC

Colour
Grey RAL 7001 / Black RAL 9005

Printing
MotionCables Tray Basic Line n° x sec. mm2 SHIELDED (UL) E467818 MC
TC – ER Oil resistant I n° x sec AWG 600 V THHW 90 °C DRY / 75 °C WET
FT4/IEEE 1202 or Type MTW “ Class K” or AWM 2587 – cRU AWM I/II A/B
90 °C 600 V FT4 sec. AWG CE RoSh WW/YYYY

TECHNICAL DATA
PRODUCT's FEATURES
FIRE RETARDANT
FT4 / IEEE 1202, IEC 60332-3 C

WATER RESISTANT
UL WET app. 75 °C

OIL RESISTANT
VDE 0472 Sect. 803 B, CNOMO E.03.40.150.N

FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

ELECTRICAL RESISTANCE
IEC 60228 Cl. 5 acc.to EN 50395 Part 5

INSULATION RESISTANCE
≥ 200 MΩ x km acc.to EN 50395

DIELECTRIC STRENGTH
6.0 kVac x 5 min.

TEMPERATURE (operative)
STATIC - 40 °C / + 90 °C

OPERATING VOLTAGE
UL 600 V
