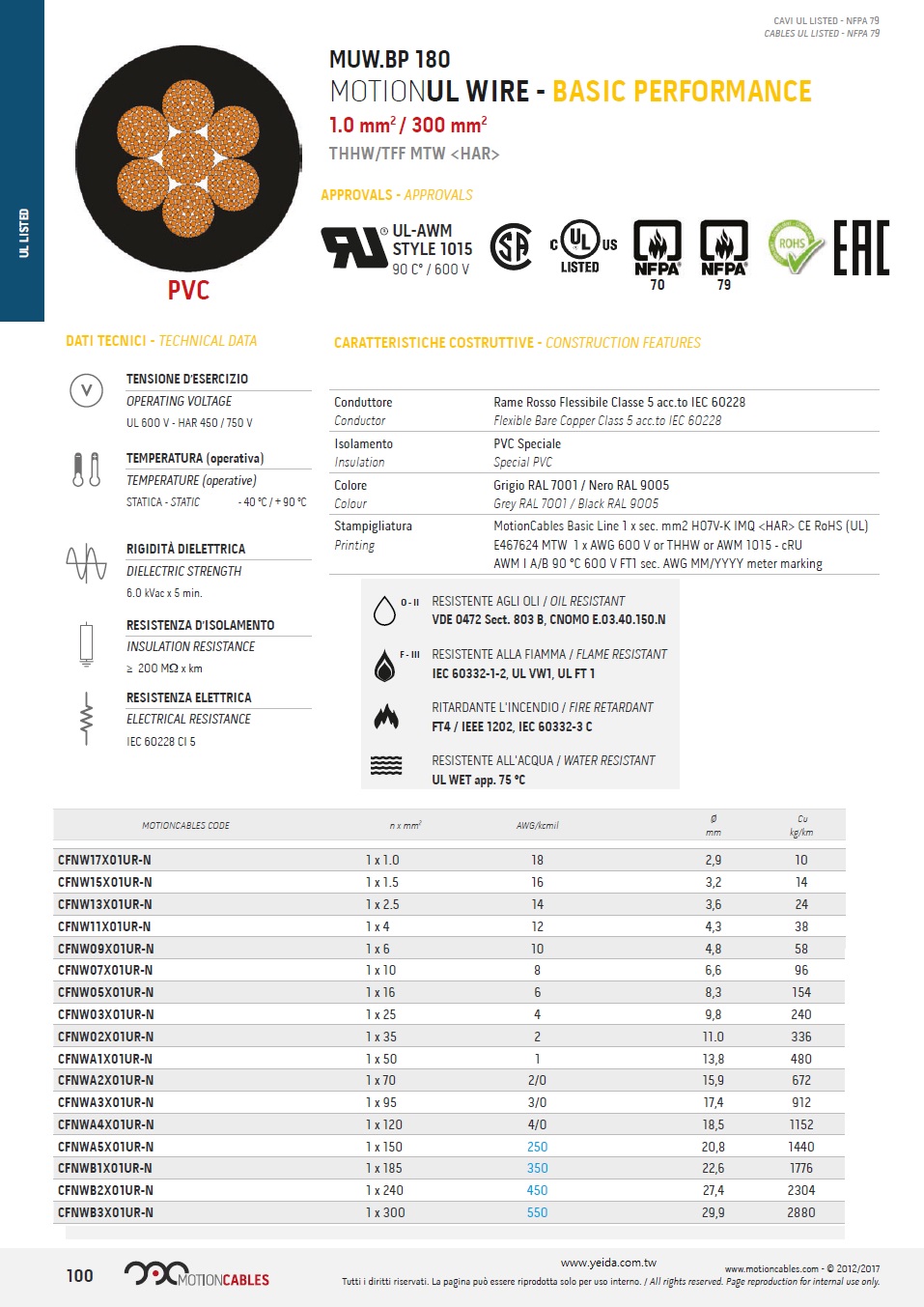

MUW-BP180

MUW.BP 180, MOTIONUL WIRE - BP, 1.0 mm2 / 300 mm2, THHW/TFF MTW UL1015, 耐熱, 組耐燃, 耐油, 防水, 工業級危險場所機床連接電纜線

APPROVALS: UL-AWM STYLE 1015 90 C° / 600 V, NFPA70, NFPA79, CSA, ROHS, EAC

CONSTRUCTION FEATURES
Conductor
Flexible Bare Copper Class 5 acc.to IEC 60228

Insulation
Special PVC

Colour
Grey RAL 7001 / Black RAL 9005

Printing
MotionCables Basic Line 1 x sec. mm2 H07V-K IMQ CE RoHS (UL)
E467624 MTW 1 x AWG 600 V or THHW or AWM 1015 - cRU
AWM I A/B 90 °C 600 V FT1 sec. AWG MM/YYYY meter marking

TECHNICAL DATA

OPERATING VOLTAGE
UL 600 V - HAR 450 / 750 V

TEMPERATURE (operative)
STATICA - STATIC - 40 °C / + 90 °C

DIELECTRIC STRENGTH
6.0 kVac x 5 min.

INSULATION RESISTANCE
≥ 200 MΩ x km

ELECTRICAL RESISTANCE
IEC 60228 Cl 5

PRODUCT's FEATURES
FIRE RETARDANT
FT4 / IEEE 1202, IEC 60332-3 C

WATER RESISTANT
UL WET app. 75 °C

OIL RESISTANT
VDE 0472 Sect. 803 B, CNOMO E.03.40.150.N

FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

MOTIONCABLES CODE
CFNW17X01UR-N,  1 x 1.0 18 2,9 10
CFNW15X01UR-N,  1 x 1.5 16 3,2 14
CFNW13X01UR-N,  1 x 2.5 14 3,6 24
CFNW11X01UR-N,  1 x 4 12 4,3 38
CFNW09X01UR-N,  1 x 6 10 4,8 58
CFNW07X01UR-N,  1 x 10 8 6,6 96
CFNW05X01UR-N,  1 x 16 6 8,3 154
CFNW03X01UR-N,  1 x 25 4 9,8 240
CFNW02X01UR-N,  1 x 35 2 11.0 336
CFNWA1X01UR-N,  1 x 50 1 13,8 480
CFNWA2X01UR-N,  1 x 70 2/0 15,9 672
CFNWA3X01UR-N,  1 x 95 3/0 17,4 912
CFNWA4X01UR-N,  1 x 120 4/0 18,5 1152
CFNWA5X01UR-N,  1 x 150 250 20,8 1440
CFNWB1X01UR-N,  1 x 185 350 22,6 1776
CFNWB2X01UR-N,  1 x 240 450 27,4 2304
CFNWB3X01UR-N,  1 x 300 550 29,9 2880
