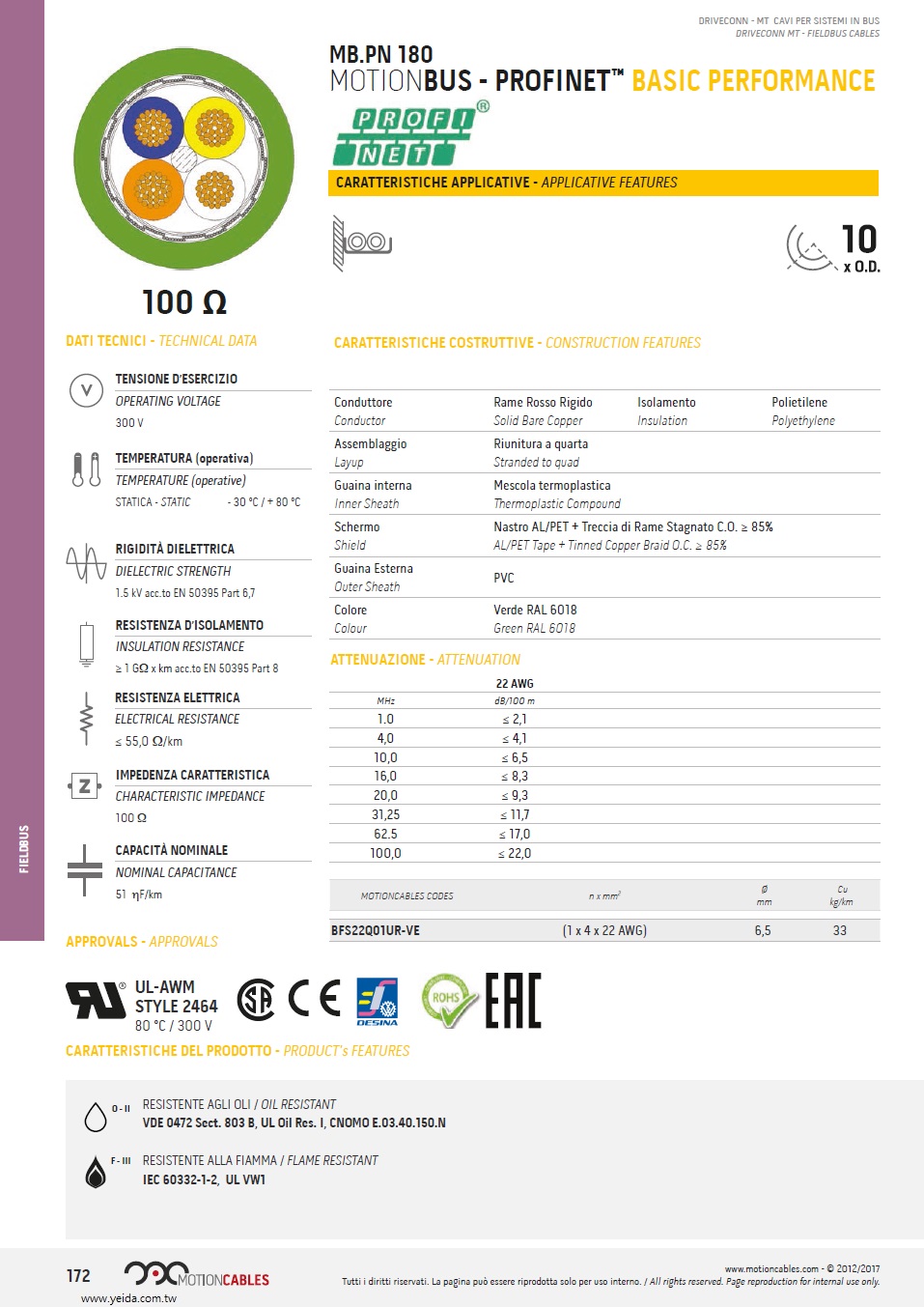

MB-PN180

MB.PN 180, MOTIONBUS - PROFINET  BASIC PERFORMANCE, 100 Ω, (BFS22Q01UR-VE) PVC 防油 耐阻燃 現場總線電纜, AWG22, UL style 2464 80° C/300 V, 100歐姆

APPROVALS: UL, CSA, CE, DESINA, ROHS, EAC

CONSTRUCTION FEATURES

Conductor
Solid Bare Copper

Insulation
Polyethylene

Layup
Stranded to quad

Inner Sheath
Thermoplastic Compound

Shield
AL/PET Tape + Tinned Copper Braid O.C. ≥ 85%

Outer Sheath
PVC

Colour
Green RAL 6018

TECHNICAL DATA

CHARACTERISTIC IMPEDANCE
100 Ω

NOMINAL CAPACITANCE
51 ηhF/km

OPERATING VOLTAGE
300 V

TEMPERATURE (operative)
STATICA - STATIC - 30 °C / + 80 °C

DIELECTRIC STRENGTH
1.5 kV acc.to EN 50395 Part 6,7

INSULATION RESISTANCE
≥ 1 GΩ x km acc.to EN 50395 Part 8

ELECTRICAL RESISTANCE
≤ 55,0 Ω/km

OIL RESISTANT
VDE 0472 Sect. 803 B, UL Oil Res. I, CNOMO E.03.40.150.N

FLAME RESISTANT
IEC 60332-1-2, UL VW1
