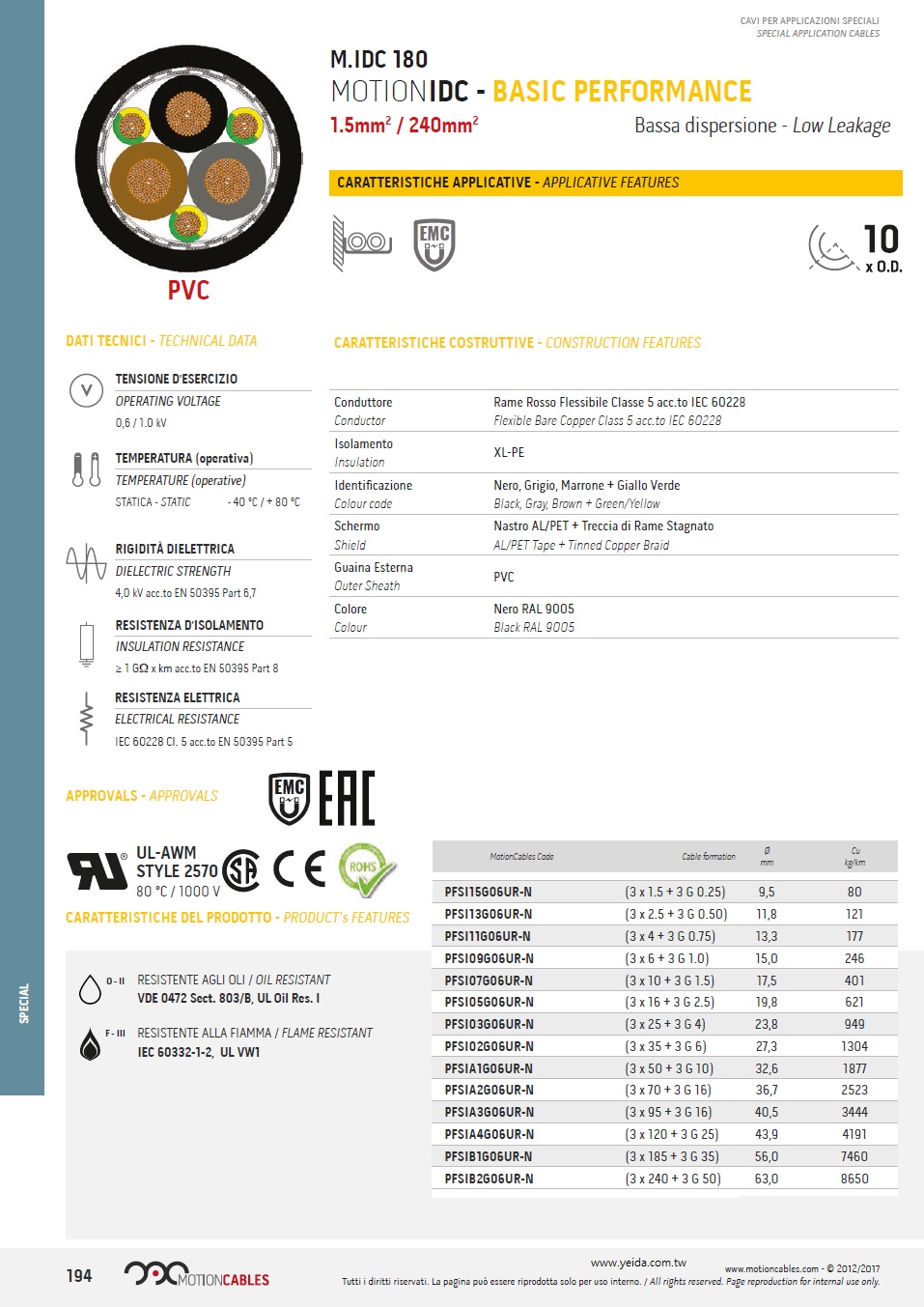

M-IDC180

M.IDC 180, MOTIONIDC - BP, 1.5mm2 / 240mm2  Induced Disturbances Conpensated Cable, UL2570, PVC降低感應電磁干擾特殊運用電纜 (耐油, 耐燃)

APPROVALS: UL-AWM STYLE 2570 80 °C / 1000 V, CSA, CE, ROHS, EMC, EAC

CONSTRUCTION FEATURES
Conductor
Flexible Bare Copper Class 5 acc.to IEC 60228

Insulation
XL-PE

Colour code
Black, Gray, Brown + Green/Yellow

Shield
AL/PET Tape + Tinned Copper Braid

Outer Sheath
PVC

Colour
Black RAL 9005

TECHNICAL DATA
PRODUCT's FEATURES
OPERATING VOLTAGE
0,6 / 1.0 kV

TEMPERATURE (operative)
STATIC - 40 °C / + 80 °C

DIELECTRIC STRENGTH
4,0 kV acc.to EN 50395 Part 6,7

INSULATION RESISTANCE
≥ 1 GΩ x km acc.to EN 50395 Part 8

ELECTRICAL RESISTANCE
IEC 60228 Cl. 5 acc.to EN 50395 Part 5

OIL RESISTANT
VDE 0472 Sect. 803/B, UL Oil Res. I

FLAME RESISTANT
IEC 60332-1-2, UL VW1
