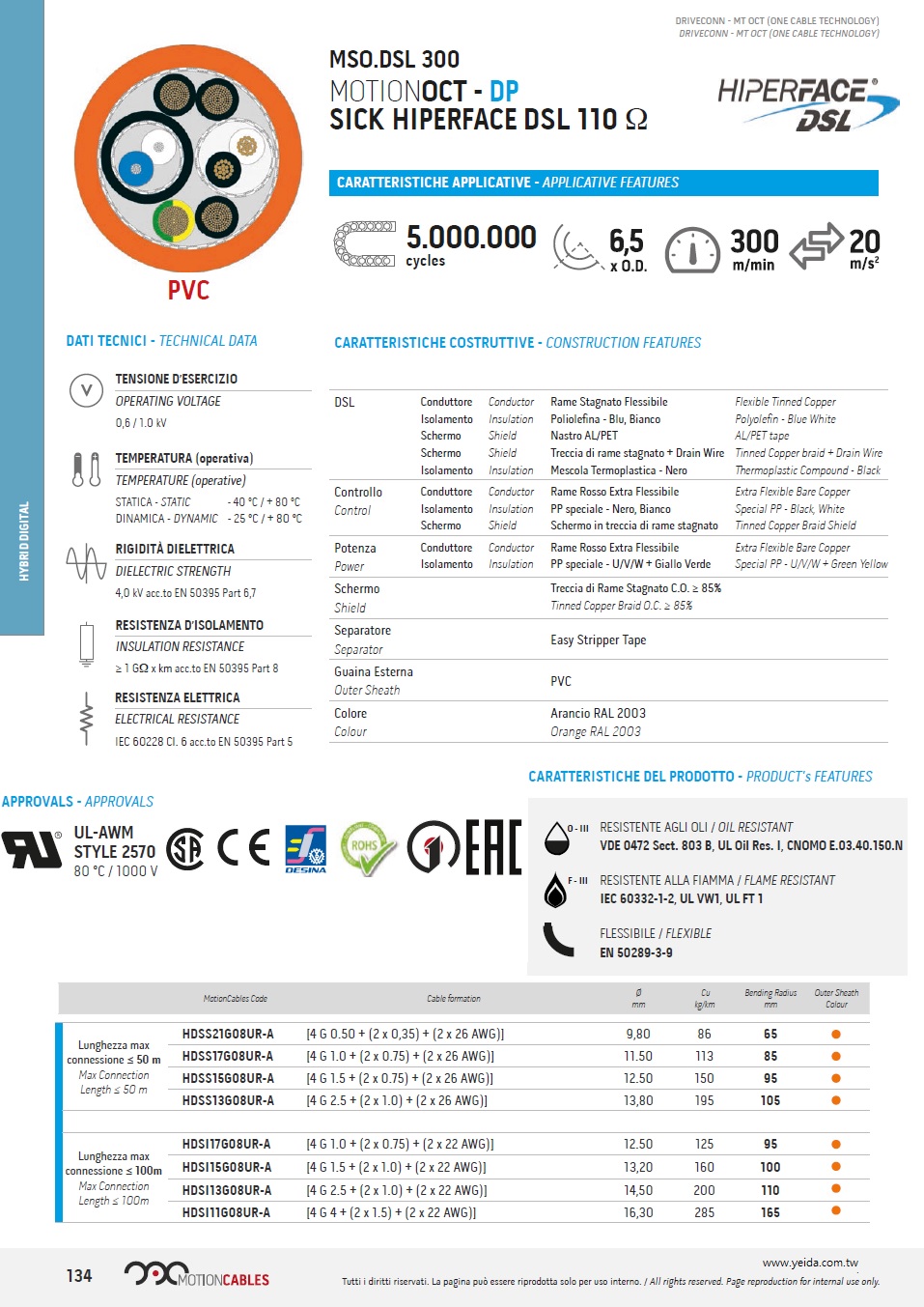

MSO-DSL300

MSO.DSL 300, MOTIONOCT - DP, SICK HIPERFACE DSL 110 Ω, 馬達回授系統旋轉型編碼器移動式電纜 (伺服驅動及信號傳輸複合單一電纜) (UL2570, CSA, CE, DESINA, ROHS, EAC ), (工業托鏈五百萬次週期移運動) (耐油, 阻耐燃, 柔性)

CONSTRUCTION FEATURES
DSL
Conductor: Flexible Tinned Copper
Insulation: Polyolefin - Blue White
Shield: AL/PET tape
Shield: Tinned Copper braid + Drain Wire
Insulation: Thermoplastic Compound - Black

Control
Conductor: Flexible Bare copper
Insulation: Special PP - Black, White
Shield: Tinned Copper Braid Shield

Power
Conductor: Flexible Bare copper
Insulation: Special PP - U/V/W + Green Yellow
Shield: Tinned Copper Braid O.C. ≥ 85%
Separator: Easy Stripper Tape
Outer Sheath: PVC
Colour: Orange RAL 2003

TECHNICAL DATA

OPERATING VOLTAGE
0,6 / 1.0 kV

TEMPERATURE (operative)
STATIC - 30 °C / + 80 °C

DIELECTRIC STRENGTH
4,0 kV acc.to EN 50395 Part 6,7

INSULATION RESISTANCE
≥ 1 GΩ x km acc.to EN 50395 Part 8

ELECTRICAL RESISTANCE
IEC 60228 Cl. 5 acc.to EN 50395 Part 5

APPROVALS - APPROVALS
UL-AWM
STYLE 2570
80 °C / 1000 V

APPLICATIVE FEATURES
OIL RESISTANT
VDE 0472 Sect. 803 B, UL Oil Res. I, CNOMO E.03.40.150.N
FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

FLEXIBLE
EN 50289-3-9
