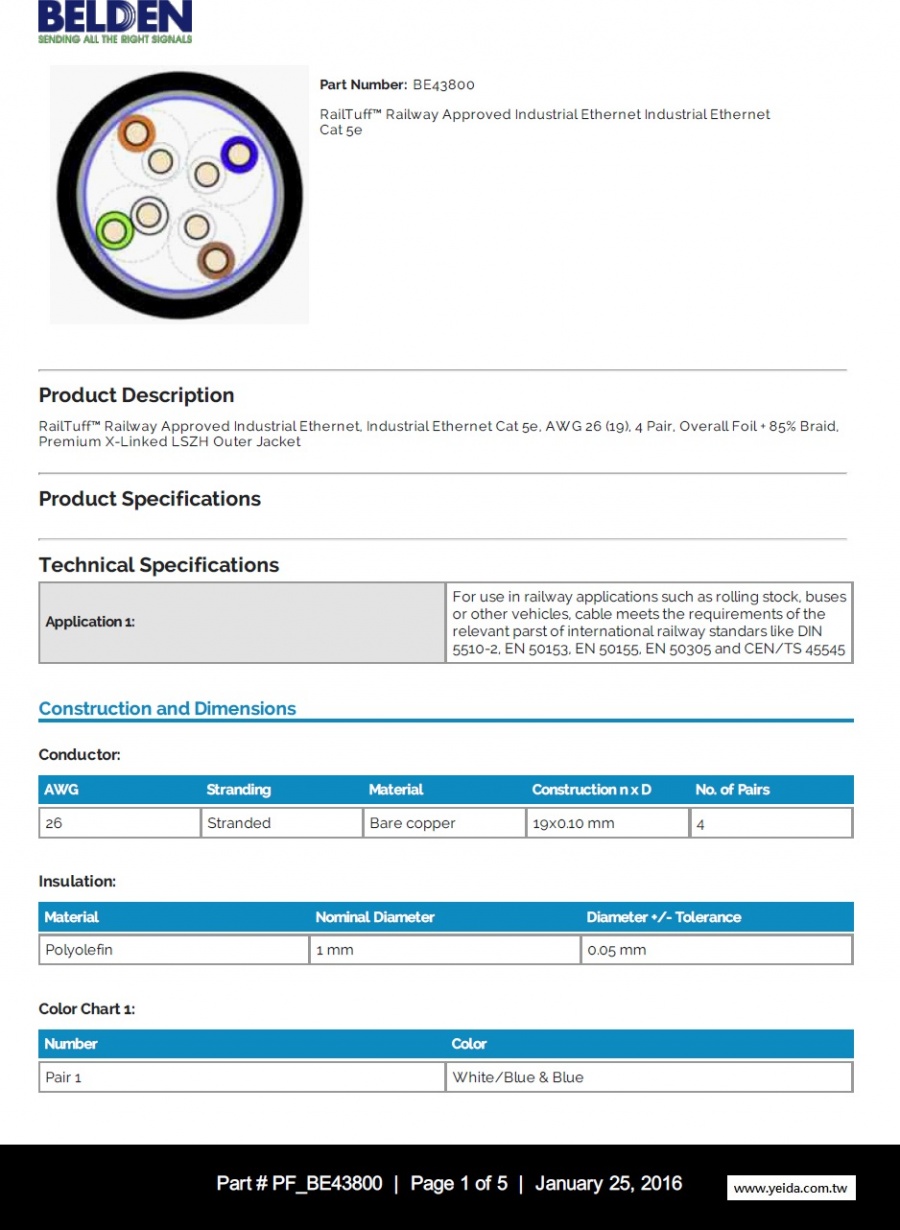

    Belden-BE43800 RailTuff™ Railway Approved Industrial Ethernet Industrial Ethernet Cat 5e RailsTuff™鐵道認證工業超五類以太網路電纜
    看原圖
    		30180482

    商品編號: Belden-BE43800

    Belden-BE43800 RailTuff™ Railway Approved Industrial Ethernet Industrial Ethernet Cat 5e RailsTuff, 鐵道認證工業超五類以太網路電纜

    RailTuff™ Railway Approved Industrial Ethernet Industrial Ethernet Cat 5e

    RailsTuff™鐵道認證工業超五類以太網路電纜

    RailTuff™ Railway Approved Industrial Ethernet, Industrial Ethernet Cat 5e, AWG 26 (19), 4 Pair, Overall Foil + 85% Braid, Premium X-Linked LSZH Outer Jacket

    Application 1:

    		 For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parst of international railway standars like DIN 5510-2, EN 50153, EN 50155, EN 50305 and CEN/TS 45545

    Construction and Dimensions

    Conductor:

    AWG Stranding Material Construction n x D No. of Pairs
    26 Stranded Bare copper 19x0.10 mm 4

    Insulation:

    Material Nominal Diameter Diameter +/- Tolerance
    Polyolefin 1 mm 0.05 mm

    Color Chart 1:

    Number Color
    Pair 1 White/Blue & Blue
    Pair 2 White/Orange & Orange
    Pair 3 White/Green & Green
    Pair 4 White/Brown & Brown

    Cabling 1:

    Lay Length
    4 pairs twisted to cable core

    Outershield 1:

    Type Material Min. Coverage [%]
    Tape Aluminum / Polyester
    Braid Tinned copper 85 %

    Outerjacket 1:

    Material Color Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
    Cross-linked FRNC / LSNH Black 6.7 mm 0.2 mm 0.9 mm

    Electrical Characteristics

    Conductor DCR:

    Max. Conductor DCR Max DCR Unbalanced Between Pairs [%] Max. DCR Unbalanced Within Pair [%]
    14.5 Ohm/100m 4 % 2 Ohm

    Capacitance:

    Max. Capacitance Unbalance Max. Mutual Capacitance
    1.6 pF/m 56 pF/m

    Min Insulation Resistance:

    		 5000 mOhm/1000ft

    Delay:

    Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
    40 ns/100m 60 ns/100m

    High Freq:

    Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
    1 MHz 3.2 db/100m 65.3 dB 62.3 dB 62.1 dB 59.1 dB 64 dB 61 dB 20 dB 40 dB 35 dB
    4 MHz 6 db/100m 56.3 dB 53.3 dB 50.3 dB 47.3 dB 52 dB 49 dB 23 dB 34 dB 23 dB
    10 MHz 9.5 db/100m 50.3 dB 47.3 dB 40.8 dB 37.8 dB 44 dB 41 dB 25 dB 30 dB 15 dB
    16 MHz 12.1 db/100m 47.2 dB 44.2 dB 35.2 dB 32.2 dB 39.9 dB 36.9 dB 25 dB 28 dB 10.9 dB
    20 MHz 13.5 db/100m 45.8 dB 42.8 dB 32.2 dB 29.2 dB 38 dB 35 dB 25 dB 27 dB 9 dB
    31.25 MHz 17.1 db/100m 42.9 dB 39.9 dB 25.8 dB 22.8 dB 34.1 dB 31.5 dB 23.3 dB 25.1 dB 5.5 dB
    62.5 MHz 24.8 db/100m 38.4 dB 35.4 dB 13.6 dB 10.6 dB 28.1 dB 25.1 dB 20.7 dB 22 dB
    100 MHz 33 db/100m 35.3 dB 32.3 dB 3.3 dB 0.3 dB 24 dB 21 dB 19 dB 20 dB

    Coupling Attenuation:

    Element
    Type I

    Coupling Attenuation Class:

    		 Type I

    Transfer Impedance:

    Frequency [MHz] Description Transfer Impedance
    1 Mhz Grade 1 Max. 10 mOhm/m
    10 Mhz   Max. 10 mOhm/m
    30 Mhz   Max. 30 mOhm/m
    100 Mhz   100 mOhm/m

    Use

    Oil Resistance:

    		 IEC 60811-2-1

    Safety

    ISO/IEC Flammability:

    		 IEC 60332-1-2 and IEC 60332-3-25

    Other Flammability:

    		 EN 50305

    Amt of Halogen IEC 60754-1 /EN50267-1:

    		 Zero

    Amt of Halogen Acid Gas; MaxConductivity:

    		 10 µS/mm

    Amt of Halogen Acid Gas; Min pH:

    		 4.3

    Fire Resistance (CI, Time to Failure):

    		 DIN 5510-2 protection level 1 to 4

    Smoke Density; Min Transmittance:

    		 70 N

    Temperature Range

    Installation Temp Range:

    		 -5 to +50 °C

    Operating Temp Range:

    		 -40 to +90 °C

    Storage Temp Range:

    		 -40 to +90 °C

    Mechanical Characteristics

    Min Bend Radius (W/o Pulling Strength):

    		 67 mm

    Min Setting Radius:

    		 33.5 mm

    Part Number

    Standards

    Other Specification:

    		 EN 50306 par 4.8 + 4.9 + 4.10 (1.5 kV/1min); Toxicity index to NF X70-100 CITc Max. 0.7 CEN/TS 45545 (Class R14 HL 3)

    CENELEC Compliance:

    		 EN 50153, EN 50155 and EN 50305
