    Belden-DEIP142U, Digital Electricity™, 2 Pr #14 Str TC, Flamarrest® Jkt, CL3P 屋內型數字電力電纜
    看原圖
    		BELDEN-DEIP144U

    Belden-DEIP142U

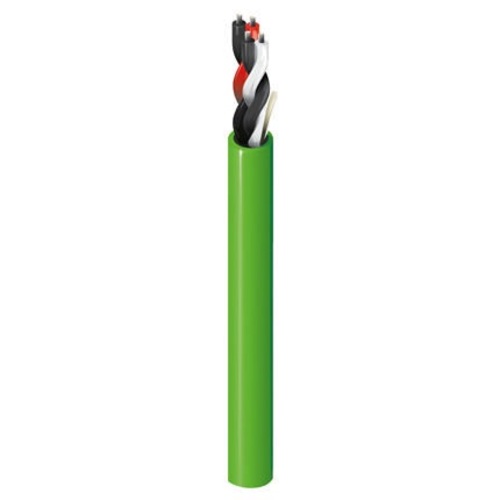

    Belden-DEIP142U, Digital Electricity™, 2 Pr #14 Str TC, Flamarrest® Jkt, CL3P 屋內型數字電力電纜

    Digital Electricity™ Optimized Cable, 2 Twisted Pair 14 AWG (19 x 27) Stranded Tinned Copper, Flamarrest® Insulation, Flamarrest® Apple Green Jacket, Ripcord, CL3P, 2000 Ft Reel

    百通數字電纜

      ⊕減少安裝時間：雙絞線可輕鬆識別電纜對，從而加快安裝速度並減少混亂

      ⊕更少的電纜浪費：默認捲軸長度為2,000 ft：典型的走線長度超過500 ft，導致傳統捲軸長度為1,000 ft的大量廢物

      ⊕靈活性：適用於室內，室外，低煙零鹵素和潮濕場所

      ⊕減少庫存的電纜：混合結構意味著您可以通過庫存和管理兩根電纜來減少庫存，而管理一根電纜則可以減少庫存

      ⊕單根電纜拉線節省時間：使用混合結構，您只需要拉一條單根電纜與兩條電纜即可，從而降低了人工成本

    數字電力應用

     ⊕遠距離供電：與直流電源或以太網供電（PoE）相比，在更長的距離內提供更多的功率

     ⊕ 安全：可以觸摸，沒有危險的電擊危險

     ⊕ 具有成本效益：無管道，低成本勞動力；電纜安裝不需要電工

     ⊕部署速度：靈活性，部署速度和變更速度

     ⊕節省空間：減少房地產需求–將IDF壁櫥旁路到區域


    Product Overview

    Suitable Applications: Indoor, Digital Electricity™, remote powering

    Physical Characteristics (Overall)


    Conductor
    AWG Stranding Material No. of Pairs
    14 19x27 TC - Tinned Copper 2
    Conductor Count: 14
    Total Number of Pairs: 2

    Insulation
    Material Material Trade Name Nominal Wall Thickness
    PVC - Polyvinyl Chloride Flamarrest® 0.011 in

    Color Chart
    Number Color
    1 Black & Red
    2 Black & White

    Outer Jacket Material
    Material Nominal Diameter Nominal Wall Thickness
    PVC - Polyvinyl Chloride 0.387 in 0.017 in

    Electrical Characteristics


    Conductor DCR
    Nominal Conductor DCR
    2.75 Ohm/1000ft

    Capacitance
    Nom. Capacitance Conductor to Conductor
    30.75 pF/ft

    Current
    Max. Recommended Current [A]
    11 Amps per Conductor at 25ºC (35°C Temperature Rise)

    Voltage
    UL Voltage Rating
    300 V RMS

    Temperature Range

    UL Temp Rating: 75°C
    Operating Temp Range: 0°C To +75°C

    Mechanical Characteristics

    Bulk Cable Weight: 75 lbs/1000ft
    Max. Pull Tension: 190 lbs
    Min Bend Radius/Minor Axis: 3.875 in

    Standards

    NEC Articles: Article 725
    NEC/(UL) Compliance: CL3P

    Applicable Environmental and Other Programs

    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2003/11/EC (BFR): Yes
    EU Directive 2011/65/EU (ROHS II): Yes
    EU Directive 2012/19/EU (WEEE): Yes
    EU Directive 2015/863/EU: Yes
    EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    EU CE Mark: Yes
    EU REACH SVHC Compliance (yyyy-mm-dd): 2020-01-24
    EU RoHS Compliance Date (yyyy-mm-dd): 2020-01-24

    Suitability

    Suitability - Indoor: Yes

    Flammability, LS0H, Toxicity Testing

    UL Flammability: NFPA 262


    Digital Electricity™標準電纜

    ＃對x AWG 室內全屏蔽非屏蔽 室內全屏蔽 室內/室外
    潮濕場所未屏蔽    		 室內/室外潮濕場所被屏蔽
    2 x 14 DEIP142U DEIP142F DEDN142U DEDN142F
    4 x 14 DEIP144U DEIP144F DEDN144U DEDN144F
    8 x 14 DEIP148U DEIP148F DEDN148U DEDN148F
    2 x 16 DEIP162U DEIP162F DEDN162U DEDN162F
    4 x 16 DEIP164U DEIP164F DEDN164U DEDN164F
    8 x 16 DEIP168U DEIP168F DEDN168U DEDN168F
    2 x 18 DEIP182U DEIP182F DEDN182U DEDN182F
    4 x 18 DEIP184U DEIP184F DEDN184U DEDN184F
    8 x 18 DEIP188U DEIP188F DEDN188U DEDN188F
