    DEIP148F, Digital Electricity™, 8 Pr #14 Str TC, O/A Foil, Flamarrest® Jkt, CL3P 屋內型遠端供電耐燃鋁箔屏蔽隔離數位電力電纜
    看原圖
    		BELDEN-DEIP148F

    DEIP148F

    DEIP148F, Digital Electricity™, 8 Pr #14 Str TC, O/A Foil, Flamarrest® Jkt, CL3P 屋內型遠端供電耐燃鋁箔屏蔽隔離數位電力電纜

    Digital Electricity™ Optimized Cable, 8 Twisted Pair 14 AWG (19 x 27) Stranded Tinned Copper, Flamarrest® Insulation, Overall Foil Shield, Flamarrest® Apple Green Jacket, Ripcord, CL3P, 2000 Ft Reel


    Product Overview

    Suitable Applications: Indoor, Digital Electricity™, remote powering

    Physical Characteristics (Overall)


    Conductor
    AWG Stranding Material No. of Pairs
    14 19x27 TC - Tinned Copper 8
    Total Number of Pairs: 8

    Insulation
    Material Material Trade Name Nominal Wall Thickness
    PVC - Polyvinyl Chloride Flamarrest® 0.011 in

    Color Chart
    Number Color
    1 Black & Red
    2 Black & White
    3 Black & Green
    4 Black & Blue
    5 Black & Yellow
    6 Black & Brown
    7 Black & Orange
    8 Red & White

    Outer Shield Material
    Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
    Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinner Copper 22

    Outer Jacket Material
    Material Nominal Diameter Nominal Wall Thickness
    PVC - Polyvinyl Chloride 0.579 in 0.017 in

    Electrical Characteristics


    Conductor DCR
    Nominal Conductor DCR Nominal Outer Shield DCR
    2.75 Ohm/1000ft 11.6 Ohm/1000ft

    Capacitance
    Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
    36.5 pF/ft 65.5 pF/ft

    Current
    Max. Recommended Current [A]
    7 Amps per Conductor at 25ºC (35°C Temperature Rise)

    Voltage
    UL Voltage Rating
    300 V RMS

    Temperature Range

    UL Temp Rating: 75°C
    Operating Temp Range: 0°C To +75°C

    Mechanical Characteristics

    Bulk Cable Weight: 275 lbs/1000ft
    Max Recommended Pulling Tension: 760 lbs
    Min Bend Radius/Minor Axis: 5.75 in

    Standards

    NEC Articles: Article 725
    NEC/(UL) Specification: CL3P

    Applicable Environmental and Other Programs

    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2003/11/EC (BFR): Yes
    EU Directive 2011/65/EU (ROHS II): Yes
    EU Directive 2012/19/EU (WEEE): Yes
    EU Directive 2015/863/EU: Yes
    EU CE Mark: Yes
    EU REACH SVHC Compliance (yyyy-mm-dd): 2020-01-27
    EU RoHS Compliance Date (yyyy-mm-dd): 2020-01-27

    Suitability

    Suitability - Indoor: Yes

    Flammability, LS0H, Toxicity Testing

    UL Flammability: NFPA 262

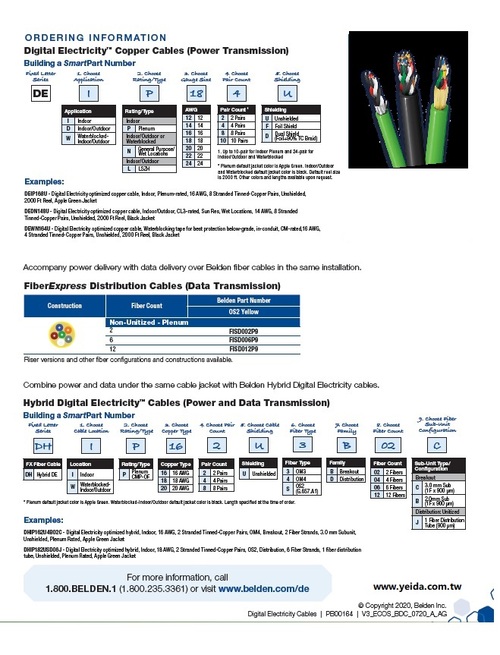

    Digital Electricity™ Standard Cables

    # Pairs x AWG Indoor Plenum Unshielded Indoor Plenum Shielded Indoor/Outdoor
    Wet Locations Unshielded    		 Indoor/Outdoor Wet Locations Shielded
    2 x 14 DEIP142U DEIP142F DEDN142U DEDN142F
    4 x 14 DEIP144U DEIP144F DEDN144U DEDN144F
    8 x 14 DEIP148U DEIP148F DEDN148U DEDN148F
    2 x 16 DEIP162U DEIP162F DEDN162U DEDN162F
    4 x 16 DEIP164U DEIP164F DEDN164U DEDN164F
    8 x 16 DEIP168U DEIP168F DEDN168U DEDN168F
    2 x 18 DEIP182U DEIP182F DEDN182U DEDN182F
    4 x 18 DEIP184U DEIP184F DEDN184U DEDN184F
    8 x 18 DEIP188U DEIP188F DEDN188U DEDN188F
