    GCG, Exane® Case Wire, Reduced Diameter 125˚C Case Wire 600 Volt 小外徑質輕耐高溫耐油防潮軌道電線

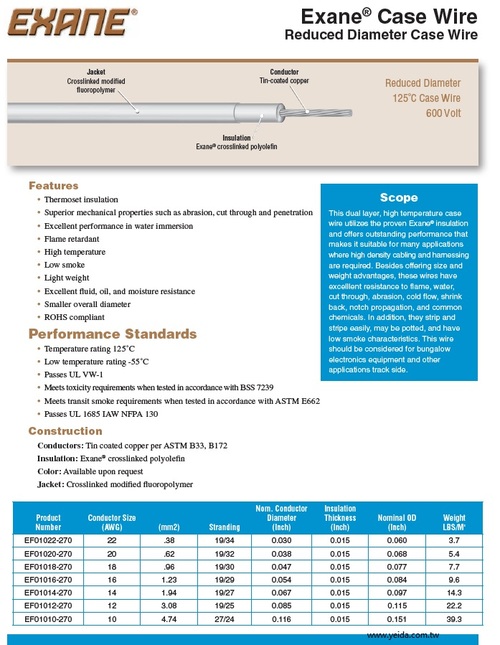

    看原圖
    		EXANE-CASEWIRE

    GCG, Exane® Case Wire, Reduced Diameter 125˚C Case Wire 600 Volt 小外徑質輕耐高溫耐油防潮低煙軌道箱體電線

    Exane® Case Wire

    Reduced Diameter Case Wire

    Reduced Diameter 125˚C Case Wire 600 Volt

    Scope

    This dual layer, high temperature case wire utilizes the proven Exane® insulation and offers outstanding performance that makes it suitable for many applications where high density cabling and harnessing are required. Besides offering size and weight advantages, these wires have excelllent resistance to flame, water, cut through, abrasion, cold flow, shrink back, notch propagation, and common chemicals. In addition, they strip and stripe easily, may be potted, and have low smoke characteristics. This wire should be considered for bungalow electronics equipment and other applications track side.

    Features

    • Thermoset insulation
    • Superior mechanical properties such as abrasion, cut through and penetration
    • Excellent performance in water immersion
    • Flame retardant
    • High temperature
    • Low smoke
    • Light weight
    • Excellent fluid, oil, and moisture resistance
    • Smaller overall diameter
    • ROHS compliant

    Performance Standards

    • Temperature rating 125˚C
    • Low temperature rating -55˚C
    • Passes UL VW-1
    • Meets toxicity requirements when tested in accordance with BSS 7239
    • Meets transit smoke requirements when tested in accordance with ASTM E662
    • Passes UL 1685 IAW NFPA 130

    Construction

    Conductors: Tin coated copper per ASTM B33, B172
    Insulation: Exane® crosslinked polyolefin
    Color: Available upon request
    Jacket: Crosslinked modified fluoropolymer



    Exane® Case Wire: Single Conductor*

    Part Number

    		 Conductor Size
    (AWG)    		 (mm2) Stranding Nom. Conductor
    Dia. (Inch)    		 Insulation
    Thickness
    (Inch)    		 Nominal OD
    (Inch)    		 Weight
    LBS/M’

    EF01022-270

    22

    .38

    19/34

    0.030

    0.015

    0.060

    3.7

    EF01020-270

    20

    .62

    19/32

    0.038

    0.015

    0.068

    5.4

    EF01018-270

    18

    .96

    19/30

    0.047

    0.015

    0.077

    7.7

    EF01016-270

    16

    1.23

    19/29

    0.054

    0.015

    0.084

    9.6

    EF01014-270

    		 14

    1.94

    19/27

    0.067

    0.015

    0.097

    14.3

    EF01012-270

    		 12

    3.08

    19/25

    0.085

    0.015

    0.115

    22.2

    EF01010-270

    		 10 4.74

    19/24

    0.116

    0.015

    0.151

    39.3
