    GCG, Exane-DAA1168A, Reduced Diameter 125°C Transit Wire 600 Volt 小外徑質輕耐高溫耐油防潮低煙鐵路和運輸車輛認證電纜線
    看原圖
    		EXANE-DAA1168A

    GCG, Exane-DAA1168A, Reduced Diameter 125°C Transit Wire 600 Volt 小外徑質輕耐高溫耐油防潮低煙鐵路和運輸車輛認證電纜線

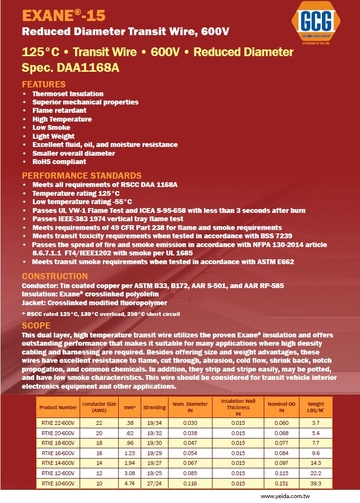

    Exane® 15 Reduced Dia. 600V

    Reduced Diameter
    125°C Transit Wire
    600 Volt

    Spec. DAA1168A

    Scope

    This dual layer, high temperature transit wire utilizes the proven Exane® insulation and offers outstanding performance that makes it suitable for many applications where high density cabling and harnessing are required. Besides offering size and weight advantages, these wires have excellent resistance to flame, cut through, abrasion, cold flow, shrink back, notch propagation, and common chemicals. In addition, they strip and stripe easily, may be potted, and have low smoke characteristics. This wire should be considered for transit vehicle interior electronics equipment and other applications.

    Features

    • Thermoset insulation
    • Superior mechanical properties
    • Flame retardant
    • High temperature
    • Low smoke
    • Light weight
    • Excellent fluid, oil, and moisture resistance
    • Smaller overall diameter
    • RoHS compliant

    Performance Standards

    • Meets all requirements of RSCC DAA 1168A
    • Temperature rating 125°C
    • Low temperature rating -55°C
    • Passes UL VW-1 Flame Test and ICEA S-95-658 with less than 3 seconds after burn
    • Passes IEEE-383 1974 vertical tray flame test
    • Meets requirements of 49 CFR Part 238 for flame and smoke requirements
    • Meets transit toxicity requirements when tested in accordance with BSS 7239
    • Passes the spread of fire and smoke emission in accordance with NFPA 130-2014 article 8.6.7.1.1 FT4/IEEE1202 with smoke per UL 1685
    • Meets transit smoke requirements when tested in accordance with ASTM E662

    Construction

    Conductor: Tin coated copper per ASTM B33, B172, AAR S-501, and AAR RP-585

    Insulation: Exane® crosslinked polyolefin

    Jacket: Crosslinked modified fluoropolymer

    * RSCC rated 125°C, 130°C overload, 250°C short circuit

    Exane®: Single Conductor

    Product Number

    Conductor Size

    (AWG)

    mm²

    Stranding

    Nom. Diameter

    In

    Insulation Wall

    Thickness

    In

    Nominal OD

    In

    Weight

    LBS/M’

    RTXE 22-600V

    22

    .38

    19/34

    0.030

    0.015

    0.060

    3.7

    RTXE 20-600V

    20

    .62

    19/32

    0.038

    0.015

    0.068

    5.4

    RTXE 18-600V

    18

    .96

    19/30

    0.047

    0.015

    0.077

    7.7

    RTXE 16-600V

    16

    1.23

    19/29

    0.054

    0.015

    0.084

    9.6

    RTXE 14-600V

    14

    1.94

    19/27

    0.067

    0.015

    0.097

    14.3

    RTXE 12-600V

    12

    3.08

    19/25

    0.085

    0.015

    0.115

    22.2

    RTXE 10-600V

    10

    4.74

    27/24

    0.116

    0.015

    0.151

    39.3
