    RSCC, Exane MVB/WTB 2C x 20AWG 90°C  120 Ohms  Low Smoke Zero Halogen Train Car Applications TD-009704, 低煙無鹵火車列車專用電纜線
    看原圖
    		EXANE-MVB

    RSCC, Exane MVB/WTB 2C x 20AWG 90°C  120 Ohms  Low Smoke Zero Halogen Train Car Applications TD-009704, 低煙無鹵火車列車專用電纜線

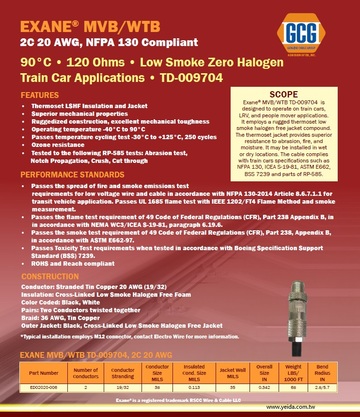

    Exane® MVB/WTB 2C 20 AWG

    2C 20 AWG, NFPA 130 Compliant

    90°C • 120 Ohms • Low Smoke Zero Halogen
    Train Car Applications • TD-009704

    Scope

    Exane® MVB/WTB TD-009704 is designed to operate on train cars, LRV, and people mover applications. It employs a rugged thermoset low smoke halogen free jacket compound. The thermoset jacket provides superior resistance to abrasion, fire, and moisture. It may be installed in wet or dry locations. The cable complies with train cars specifications such as NFPA 130, ICEA S-19-81, ASTM E662, BSS 7239 and parts of RP-585.

    Features

    • Thermoset LSHF Insulation and Jacket
    • Superior mechanical properties
    • Ruggedized construction, excellent mechanical toughness
    • Operating temperature -40°C to 90°C
    • Passes temperature cycling test -30°C to +125°C, 250 cycles
    • Ozone resistance
    • Tested to the following RP-585 tests: Abrasion test,
    • Notch Propagation, Crush, Cut through

    Performance Standards

    • Passes the spread of fire and smoke emissions test requirements for low voltage wire and cable in accordance with NFPA 130-2014 Article 8.6.7.1.1 for transit vehicle application.
    • Passes UL 1685 flame test with IEEE 1202/FT4 Flame Method and smoke measurement.
    • Passes the flame test requirement of 49 Code of Federal Regulations (CFR), Part 238 Appendix B, in accordance with NEMA WC3/ICEA S-19-81, paragraph 6.19.6.
    • Passes the smoke test requirement of 49 Code of Federal Regulations (CFR), Part 238, Appendix B, in accordance with ASTM E662-97.
    • Passes Toxicity Test requirements when tested in accordance with Boeing Specification Support Standard (BSS) 7239.
    • ROHS and Reach compliant

    Construction

    Conductor: Stranded Tin Copper 20 AWG (19/32)
    Insulation: Cross-Linked Low Smoke Halogen Free Foam
    Color Coded: Black, White
    Pairs: Two Conductors twisted together
    Braid: 36 AWG, Tin Copper
    Outer Jacket: Black, Cross-Linked Low Smoke Halogen Free Jacket
    *RSCC rated 125°C, 130°C overload, 250°C short circuit
    **2KV heavy duty available on request

    EXANE MVB/WTB TD-009704, 2C 20 AWG

    Part Number

    Number of

    Conductors

    Conductor

    Stranding

    Conductor

    Size

    MILS

    Insulated

    Cond. Size

    MILS

    Jacket Wall

    MILS

    Overall

    Size

    IN

    Weight

    LBS/

    1000 FT

    Bend

    Radius

    IN

    ED02020-006

    2

    19/32

    38

    0.113

    35

    0.342

    68

    2.8/5.7

    Exane® is a registered trademark RSCC Wire & Cable LLC
