Exane-RTXE
GCG, Exane-15 1168B Multi-Conductor 600V, TRANSIT Multi-Conductor Cable 鐵路和運輸電纜線
125°C • Multi-Conductor Cable • 600V
Shielded • Unshielded • Spec. DAC1168B
Scope
Exane® multi-conductor transit cables are a rugged, flame retardant construction. They are suitable for installation indoors or outdoors in metals trays, conduit, underground duct, or for direct burial. The cables have excellent flexibility and resist crush, low temperature cracking, moisture and petrochemical fluids. The Exane® thermoset insulation system provides a conductor component with superior cut-through, abrasion resistance and electrical overload characteristics.
Features
• Wide insulated conductor temperature range -55°C to 125°C
• Light weight
• Superior mechanical properties
• Flexible construction
• Flame retardant
• Low smoke
• Excellent fluid/oil resistance
• Moisture and sunlight resistant
• RoHS Compliant
Performance Standards
• Meets all requirements of RSCC Spec. DAC 1168B
• Passes the spread of fire and smoke emission in accordance with NFPA 130-2014 article 8.6.7.11 • FT4/IEEE1202 with smoke per UL 1685
• Single conductors pass UL VW-1 flame test
Construction
Conductor: Annealed, tinned copper per ASTM B33, B172, AAR S-501, and AAR RP-585
Insulation: Exane® 15 crosslinked polyolefin with crosslinked modified fluoropolymer jacket
Color Code: As specified by customer
Fillers: When required, flame retardant and non-hygroscopic
Shield: Tin copper braid or as specified by customer
Binder Tape: Non-hygroscopic and non-wicking
Jacket: Exane® crosslinked polyolefin
* RSCC rated 125°C, 130°C overload, 250°C short circuit
Scope
Exane®-15 reduced diameter multiconductor transit cable is ideally suited to operate in the confined spaces of today’s transit vehicles. They are designed to operate inside equipment, in trays, conduit, raceways and other areas of the vehicle where space is limited. These cables have excellent flexibility, flame, crush, oil and moisture resistance. They are available in both unshielded and shielded constructions.

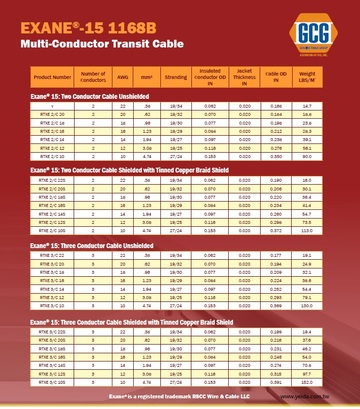

Product Number
|
Number of
Conductors
|
AWG
|
mm²
|
Stranding
|
Insulated
Conductor OD
In
|
Jacket
Thickness
In
|
Cable OD
In
|
Weight
LBS/M’
|
v
|
2
|
22
|
.38
|
19/34
|
0.062
|
0.020
|
0.168
|
14.7
|
RTXE 2/C 20
|
2
|
20
|
.62
|
19/32
|
0.070
|
0.020
|
0.184
|
18.8
|
RTXE 2/C 18
|
2
|
18
|
.96
|
19/30
|
0.077
|
0.020
|
0.198
|
23.8
|
RTXE 2/C 16
|
2
|
16
|
1.23
|
19/29
|
0.084
|
0.020
|
0.212
|
28.3
|
RTXE 2/C 14
|
2
|
14
|
1.94
|
19/27
|
0.097
|
0.020
|
0.238
|
39.1
|
RTXE 2/C 12
|
2
|
12
|
3.08
|
19/25
|
0.116
|
0.020
|
0.276
|
56.1
|
RTXE 2/C 10
|
2
|
10
|
4.74
|
27/24
|
0.153
|
0.020
|
0.350
|
90.0
|
Exane® 15: Two Conductor Cable Shielded with Tinned Copper Braid Shield
|
RTXE 2/C 22S
|
2
|
22
|
.38
|
19/34
|
0.062
|
0.020
|
0.190
|
16.0
|
RTXE 2/C 20S
|
2
|
20
|
.62
|
19/32
|
0.070
|
0.020
|
0.206
|
30.1
|
RTXE 2/C 18S
|
2
|
18
|
.96
|
19/30
|
0.077
|
0.020
|
0.220
|
36.4
|
RTXE 2/C 16S
|
2
|
16
|
1.23
|
19/29
|
0.084
|
0.020
|
0.234
|
41.4
|
RTXE 2/C 14S
|
2
|
14
|
1.94
|
19/27
|
0.097
|
0.020
|
0.260
|
54.7
|
RTXE 2/C 12S
|
2
|
12
|
3.08
|
19/25
|
0.116
|
0.020
|
0.298
|
73.5
|
RTXE 2/C 10S
|
2
|
10
|
4.74
|
27/24
|
0.153
|
0.020
|
0.372
|
113.0
|
Exane® 15: Three Conductor Cable Unshielded
|
RTXE 3/C 22
|
3
|
22
|
.38
|
19/34
|
0.062
|
0.020
|
0.177
|
19.1
|
RTXE 3/C 20
|
3
|
20
|
.62
|
19/32
|
0.070
|
0.020
|
0.194
|
24.9
|
RTXE 3/C 18
|
3
|
18
|
.96
|
19/30
|
0.077
|
0.020
|
0.209
|
32.1
|
RTXE 3/C 16
|
3
|
16
|
1.23
|
19/29
|
0.084
|
0.020
|
0.224
|
38.6
|
RTXE 3/C 14
|
3
|
14
|
1.94
|
19/27
|
0.097
|
0.020
|
0.252
|
54.4
|
RTXE 3/C 12
|
3
|
12
|
3.08
|
19/25
|
0.116
|
0.020
|
0.293
|
79.1
|
RTXE 3/C 10
|
3
|
10
|
4.74
|
27/24
|
0.153
|
0.020
|
0.369
|
130.0
|
Exane® 15: Three Conductor Cable Shielded with Tinned Copper Braid Shield
|
RTXE 3/C 22S
|
3
|
22
|
.38
|
19/34
|
0.062
|
0.020
|
0.199
|
19.4
|
RTXE 3/C 20S
|
3
|
20
|
.62
|
19/32
|
0.070
|
0.020
|
0.216
|
37.6
|
RTXE 3/C 18S
|
3
|
18
|
.96
|
19/30
|
0.077
|
0.020
|
0.231
|
46.2
|
RTXE 3/C 16S
|
3
|
16
|
1.23
|
19/29
|
0.084
|
0.020
|
0.246
|
54.0
|
RTXE 3/C 14S
|
3
|
14
|
1.94
|
19/27
|
0.097
|
0.020
|
0.274
|
70.8
|
RTXE 3/C 12S
|
3
|
12
|
3.08
|
19/25
|
0.116
|
0.020
|
0.315
|
97.7
|
RTXE 3/C 10S
|
3
|
10
|
4.74
|
27/24
|
0.153
|
0.020
|
0.391
|
152.0
|
